LTC1471 - Single and Dual PCMCIA

Linear Technology

The LTC1471 by Linear Technology is a Single and Dual PCMCIA. Below is the official datasheet preview.

📥 Download Datasheet

LTC1471 Single and Dual PCMCIA by Linear Technology - Datasheet Preview — Official preview page of the LTC1471 Single and Dual PCMCIA datasheet (Linear Technology).

Datasheet Details

Part number	LTC1471
Manufacturer	Linear Technology
File Size	149.93 KB
Description	Single and Dual PCMCIA
Datasheet	LTC1471_LinearTechnology.pdf

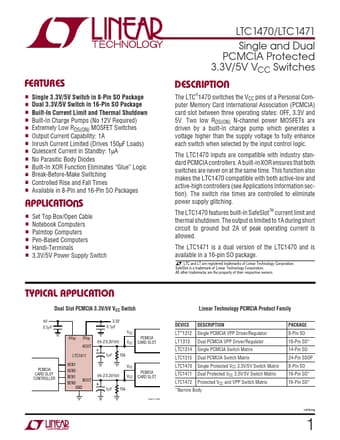

Additional preview pages of the LTC1471 datasheet.

LTC1471 Product details

Features

Single 3.3V/5V Switch in 8-Pin SO Package.
Dual 3.3V/5V Switch in 16-Pin SO Package.
Built-In Current Limit and Thermal Shutdown.
Built-In Charge Pumps (No 12V Required).
Extremely Low RDS(ON) MOSFET Switches.
Output Current Capability: 1A.
Inrush Current Limited (Drives 150µF Loads).
Quiescent Current in Standby: 1µA.
No Parasitic Body Diodes.
Built-In XOR Function Eliminates “Glue” Logic.
Break-Before-Make Switching.
Controlled Rise.
