LTC1346A - 10Mbps DCE/DTE V.35 Transceiver

Linear Technology

📥 Download Datasheet

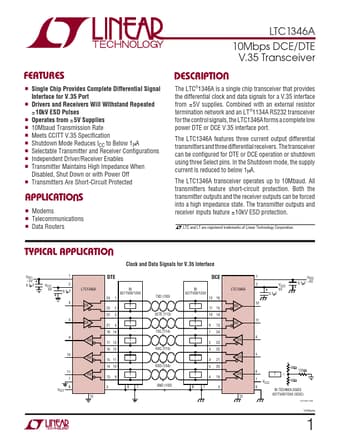

LTC1346A Datasheet Preview — Preview of LTC1346A PDF

Datasheet Details

Part number	LTC1346A
Manufacturer	Linear Technology
File Size	220.69 KB
Description	10Mbps DCE/DTE V.35 Transceiver
Datasheet	LTC1346A_LinearTechnology.pdf

LTC1346A Product details

Description

00 0 1, 2, 3 All RX ON, All DX OFF 10 0 All OFF, Shutdown 0 1 0 1, 2, 3 1, 2 DCE Mode 1 1 0 1, 2, 3 DCE Mode, All RX OFF 0 0 1 1, 2 1, 2, 3 DTE Mode 1 0 1 1, 2 DTE Mode, All RX OFF 0 1 1 1, 2, 3 1, 2, 3 All ON 1 1 1 1, 2, 3 All DX ON, All RX OFF Transmitte

Features

Single Chip Provides Complete Differential Signal Interface for V.35 Port.
Drivers and Receivers Will Withstand Repeated ±10kV ESD Pulses.
Operates from ±5V Supplies.
10Mbaud Transmission Rate.
Meets CCITT V.35 Specification.
Shutdown Mode Reduces ICC to Below 1µA.
Selectable Transmitter and Receiver Configurations.
Independent Driver/Receiver Enables.
Transmitter Maintains High Impedance When Disabled, Shut Down or with Power Off.
Transmitters.
