LTC1198 - 8-Bit SO-8 1MSPS ADCs

This page provides the datasheet information for the LTC1198, a member of the LTC 8-Bit SO-8 1MSPS ADCs family.

Description

The LTC®1196/LTC1198 are 600ns, 8-bit A/D converters with sampling rates up to 1MHz.

They are offered in 8-pin SO packages and operate on 3V to 6V supplies.

Power dissipation is only 10mW with a 3V supply or 50mW with a 5V supply.

Features

  • n High Sampling Rates: 1MHz (LTC1196) 750kHz (LTC1198) n Low Cost n Single Supply 3V and 5V Specifications n Low Power: 10mW at 3V Supply 50mW at 5V Supply n Auto-Shutdown: 1nA Typical (LTC1198) n ±1/2LSB Total Unadjusted Error over Temperature n 3-Wire Serial I/O n 1V to 5V Input Span Range (LTC1196) n Converts 1MHz Inputs to 7 Effective Bits n Differential Inputs (LTC1196) n 2-Channel MUX (LTC1198) n SO-8 Plastic Package.

📥 Download Datasheet

Datasheet preview – LTC1198

📁 Similar Datasheet

  • LTC1000-S - Current Transducer (LEM)
  • LTC1000-SF - Current Transducer (LEM)
  • LTC1000-SFC - Current Transducer (LEM)
  • LTC1000-T - Current Transducer (LEM)
  • LTC1044 - Switched Capacitor Voltage Converter (Analog Devices)
  • LTC1051 - Dual/Quad Precision Zero-Drift Operational Amplifiers (Linear)
  • LTC1052 - Chopper-Stabilized Operational Amplifier (Texas Instruments)
  • LTC1054 - Switched Capacitor Voltage Converter (Linear Technology Corporation)
  • LTC1054L - Switched Capacitor Voltage Converter (Linear Technology Corporation)
  • LTC1064-3 - 8th Order Linear Phase Lowpass Filter (Linear)
Other Datasheets by Linear Technology
  • LTC1196 - 8-Bit SO-8 1MSPS ADCs
  • LTC1197 - 10-Bit 500ksps ADCs
  • LTC1197L - 10-Bit 500ksps ADCs
  • LTC1199 - 10-Bit 500ksps ADCs
  • LTC1199L - 10-Bit 500ksps ADCs
  • LTC1100 - Zero-Drift Instrumentation Amplifier
  • LTC1142 - Dual High Efficiency Synchronous Step-Down Switching Regulators
  • LTC1142HV - Dual High Efficiency Synchronous Step-Down Switching Regulators

Full PDF Text Transcription

Click to expand full text

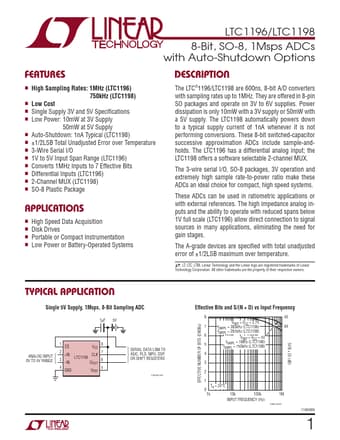

LTC1196/LTC1198 8-Bit, SO-8, 1Msps ADCs with Auto-Shutdown Options FEATURES n High Sampling Rates: 1MHz (LTC1196) 750kHz (LTC1198) n Low Cost n Single Supply 3V and 5V Specifications n Low Power: 10mW at 3V Supply 50mW at 5V Supply n Auto-Shutdown: 1nA Typical (LTC1198) n ±1/2LSB Total Unadjusted Error over Temperature n 3-Wire Serial I/O n 1V to 5V Input Span Range (LTC1196) n Converts 1MHz Inputs to 7 Effective Bits n Differential Inputs (LTC1196) n 2-Channel MUX (LTC1198) n SO-8 Plastic Package APPLICATIONS n High Speed Data Acquisition n Disk Drives n Portable or Compact Instrumentation n Low Power or Battery-Operated Systems DESCRIPTION The LTC®1196/LTC1198 are 600ns, 8-bit A/D converters with sampling rates up to 1MHz.
