LTC1063 - DC Accurate/ Clock-Tunable 5th Order Butterworth Lowpass Filter

Linear Technology

📥 Download Datasheet

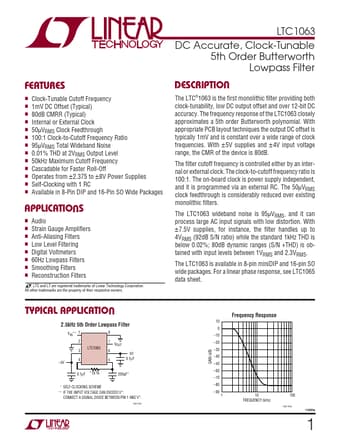

LTC1063 Datasheet Preview — Preview of LTC1063 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTC1063
Manufacturer	Linear Technology
File Size	242.15 KB
Description	DC Accurate/ Clock-Tunable 5th Order Butterworth Lowpass Filter
Datasheet	LTC1063_LinearTechnology.pdf

LTC1063 Product details

Features

Clock-Tunable Cutoff Frequency.
1mV DC Offset (Typical).
80dB CMRR (Typical).
Internal or External Clock.
50µVRMS Clock Feedthrough.
100:1 Clock-to-Cutoff Frequency Ratio.
95µVRMS Total Wideband Noise.
0.01% THD at 2VRMS Output Level.
50kHz Maximum Cutoff Frequency.
Cascadable for Faster Roll-Off.
Operates from ±2.375 to ±8V Power Supplies.
Self-Clocking with 1 RC.
Available in 8-Pin DIP and 16-Pin SO Wide Packages U.
