LT8640S - 6A Synchronous Step-Down Silent Switcher-2

Linear Technology

Datasheet Details

Part number	LT8640S
Manufacturer	Linear Technology
File Size	3.22 MB
Description	6A Synchronous Step-Down Silent Switcher-2
Datasheet	LT8640S-LinearTechnology.pdf

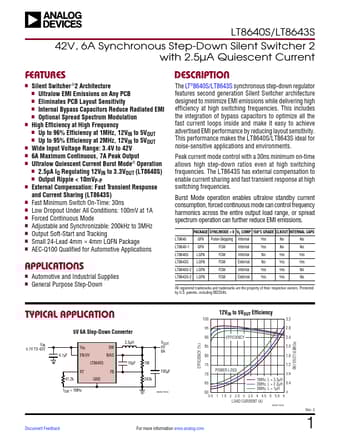

The LT®8640S/LT8643S synchronous step-down regulator

n Silent Switcher ®2 Architecture n Ultralow EMI Emissions on Any PCB n Eliminates PCB Layout Sensitivity n Internal Bypass Capacitors Reduce Radiated EMI n Optional Spread Spectrum Modulation n High Efficiency at High Frequency n Up to 96% Efficiency at 1MHz, 12VIN to 5VOUT n Up to 95% Efficiency at 2MHz, 12VIN to 5VOUT n Wide Input Voltage Range: 3.4V to 42V n 6A Maximum Continuous, 7A Peak Output n Ultralow Quiescent Current Burst Mode® Operation n 2.5µA IQ Regulating 12VIN to 3.3VOUT (LT8640.
