LT4256-2, LT4256-1 - (LT4256-1/-2) Positive High Voltage Hot Swap Controllers

Linear Technology

📥 Download Datasheet

LT4256-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT4256-2, LT4256-1. Please refer to the document for exact specifications by model.

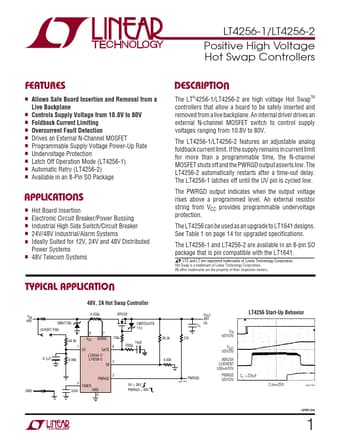

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LT4256-2, LT4256-1
Manufacturer	Linear Technology
File Size	182.98 KB
Description	(LT4256-1/-2) Positive High Voltage Hot Swap Controllers
Datasheet	LT4256-1_LinearTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: LT4256-2, LT4256-1. Please refer to the document for exact specifications by model.

LT4256-2 Product details

Features

Allows Safe Board Insertion and Removal from a Live Backplane.
Controls Supply Voltage from 10.8V to 80V.
Foldback Current Limiting.
Overcurrent Fault Detection.
Drives an External N-Channel MOSFET.
Programmable Supply Voltage Power-Up Rate.
Undervoltage Protection.
Latch Off Operation Mode (LT4256-1).
Automatic Retry (LT4256-2).
Available in an 8-Pin SO Package U.
