LT2078, LT2 - Micropower/ Dual and Quad/ Single Supply/ Precision Op Amps

Name: LT2078
SKU: LT2078-52665

Linear Technology

📥 Download Datasheet

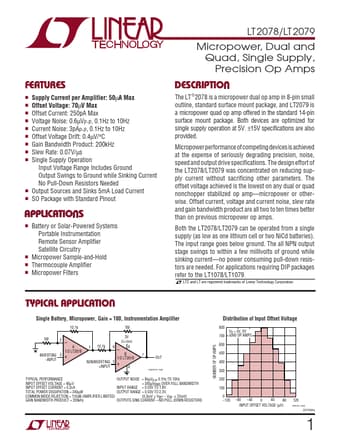

LT2078 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT2078, LT2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LT2078, LT2
Manufacturer	Linear Technology
File Size	332.03 KB
Description	Micropower/ Dual and Quad/ Single Supply/ Precision Op Amps
Datasheet	LT2-078.pdf
Note	This datasheet PDF includes multiple part numbers: LT2078, LT2. Please refer to the document for exact specifications by model.

LT2078 Product details

Description

The LT®2078 is a micropower dual op amp in 8-pin small outline, standard surface mount package, and LT2079 is a micropower quad op amp offered in the standard 14-pin surface mount package.

Features

s Supply Current per Amplifier: 50µA Max s Offset Voltage: 70µV Max s Offset Current: 250pA Max s Voltage Noise: 0.6µVP-P, 0.1Hz to 10Hz s Current Noise: 3pAP-P, 0.1Hz to 10Hz s Offset Voltage Drift: 0.4µV/°C s Gain Bandwidth Product: 200kHz s Slew Rate: 0.07V/µs s Single Supply Operation Input Voltage Range Includes Ground Output Swings to Ground while Sinking Current No Pull-Down Resistors Needed s Output Sources and Sinks 5mA Load Current s SO Package with Standard Pinout U.
