LT1781, LT1 - Low Power 5V RS232 Dual Driver/Receiver with 15kV ESD Protection

Name: LT1781
SKU: LT1781-52407

Linear Technology

The LT1781 by Linear Technology is a Low Power 5V RS232 Dual Driver/Receiver with 15kV ESD Protection. Below is the official datasheet preview.

📥 Download Datasheet

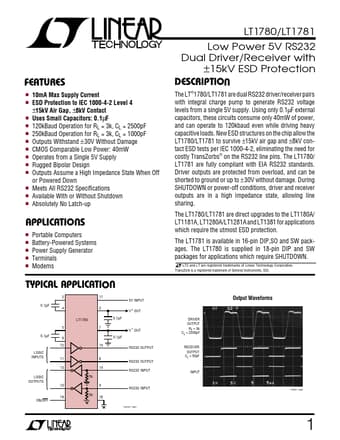

LT1781 Low Power 5V RS232 Dual Driver/Receiver with 15kV ESD Protection by Linear Technology - Datasheet Preview — Official preview page of the **LT1781** Low Power 5V RS232 Dual Driver/Receiver with 15kV ESD Protection datasheet (Linear Technology).

Datasheet Details

Part number	LT1781, LT1
Manufacturer	Linear Technology
File Size	276.13 KB
Description	Low Power 5V RS232 Dual Driver/Receiver with 15kV ESD Protection
Datasheet	LT1-780.pdf
Note	This datasheet PDF includes multiple part numbers: LT1781, LT1. Please refer to the document for exact specifications by model.
Additional preview pages of the LT1781 datasheet.

LT1781 Product details

Features

s s s s s s s s s s s s s 10mA Max Supply Current ESD Protection to IEC 1000-4-2 Level 4 ±15kV Air Gap, ±8kV Contact Uses Small Capacitors: 0.1µF 120kBaud Operation for RL = 3k, CL = 2500pF 250kBaud Operation for RL = 3k, CL = 1000pF Outputs Withstand ± 30V Without Damage CMOS Comparable Low Power: 40mW Operates from a Single 5V Supply Rugged Bipolar Design Outputs Assume a High Impedance State When Off or Powered Down Meets All RS232 Specifications Available With or Without Shutdown Absolute.
