LT1677 - Low Noise/ Rail-to-Rail Precision Op Amp

This page provides the datasheet information for the LT1677, a member of the LT1 Low Noise/ Rail-to-Rail Precision Op Amp family.

Features

  • Rail-to-Rail Input and Output.
  • 100% Tested Low Voltage Noise: 3.2nV/√Hz Typ at 1kHz 4.5nV/√Hz Max at 1kHz.
  • Offset Voltage: 60µV Max.
  • Low VOS Drift: 0.2µV/°C Typ.
  • Low Input Bias Current: 20nA Max.
  • Wide Supply Range: 3V to ±18V.
  • High AVOL: 7V/µV Min, RL = 10k.
  • High CMRR: 109dB Min.
  • High PSRR: 108dB Min.
  • Gain Bandwidth Product: 7.2MHz.
  • Slew Rate: 2.5V/µs.
  • Operating Temperature Range:.
  • 40°C to 85°C U.

📥 Download Datasheet

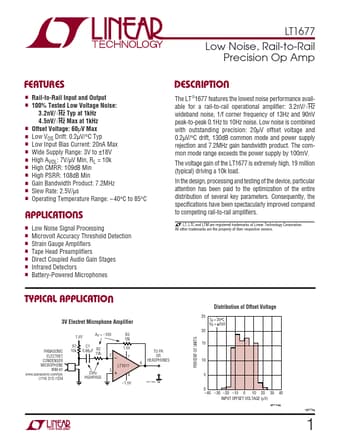

Datasheet preview – LT1677
