LT1031 - Precision 10 Volt Reference

This page provides the datasheet information for the LT1031, a member of the LT1 Precision 10 Volt Reference family.

Features

  • Pin Compatible with LH0070 and AD581.
  • Ultralow Drift.
  • 5ppm/°C Max Slope.
  • Trimmed Output Voltage.
  • Operates in Series or Shunt Mode.
  • Output Sinks and Sources in Series Mode.
  • Very Low Noise < 1ppmP-P 0.1Hz to 10Hz.
  • > 100dB Ripple Rejection.
  • Minimum Input Voltage of 11V U.

📥 Download Datasheet

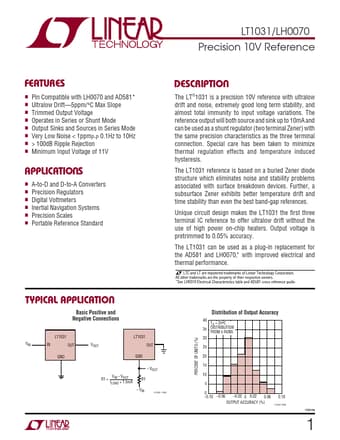

Datasheet preview – LT1031

📁 Similar Datasheet

  • LT103 - LT Series: 25/30 WATT Wide Input Range (ETC)
  • LT1030C - QUADRUPLE LOW-POWER LINE DRIVER (Texas Instruments)
  • LT1034-1.2 - Micropower Dual Reference (Linear)
  • LT1034-2.5 - Micropower Dual Reference (Linear)
  • LT1035C - Logic Controlled Regulator (Linear)
  • LT1035M - Logic Controlled Regulator (Linear)
  • LT1036 - Logic Controlled Regulator (Linear)
  • LT1037 - PRECISION OPERATIONAL AMPLIFIERS (Texas Instruments)
  • LT1037 - Precision Operational Amplifiers (Linear)
  • LT1037A - PRECISION OPERATIONAL AMPLIFIERS (Texas Instruments)
Other Datasheets by Linear Technology
  • LT1030 - Quad Low Power Line Driver
  • LT1030CS - Quad Low Power Line Driver
  • LT1032 - Quad Low Power Line Driver
  • LT1033 - 3A Negative Adjustable Regulator
  • LT1036C - Logic Controlled Regulator
  • LT1036M - Logic Controlled Regulator
  • LT1038 - 10Amp Positive Adjustable Voltage Regulator
  • LT1039 - RS232 Driver/Receiver with Shutdown

Full PDF Text Transcription

Click to expand full text
LT1031/LH0070 Precision 10V Reference U U FEATURES ■ Pin Compatible with LH0070 and AD581* ■ Ultralow Drift—5ppm/°C Max Slope ■ Trimmed Output Voltage ■ Operates in Series or Shunt Mode ■ Output Sinks and Sources in Series Mode ■ Very Low Noise < 1ppmP-P 0.1Hz to 10Hz ■ > 100dB Ripple Rejection ■ Minimum Input Voltage of 11V U APPLICATIO S ■ A-to-D and D-to-A Converters ■ Precision Regulators ■ Digital Voltmeters ■ lnertial Navigation Systems ■ Precision Scales ■ Portable Reference Standard DESCRIPTIO The LT®1031 is a precision 10V reference with ultralow drift and noise, extremely good long term stability, and almost total immunity to input voltage variations.
