LTC4012-2, LTC4012 - Multi-Chemistry Battery Charger

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTC4012-2, LTC4012. Please refer to the document for exact specifications by model.

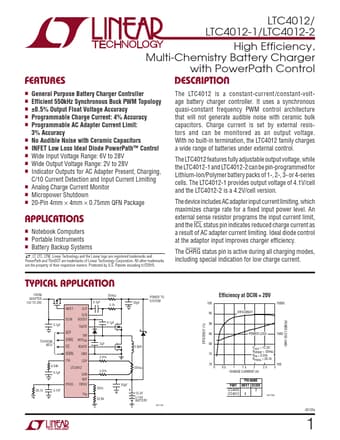

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LTC4012-2, LTC4012
Manufacturer Linear Technology Corporation
File Size 385.89 KB
Description Multi-Chemistry Battery Charger
Datasheet download datasheet LTC4012_LinearTechnologyCorporation.pdf
Note This datasheet PDF includes multiple part numbers: LTC4012-2, LTC4012.
Please refer to the document for exact specifications by model.

LTC4012-2 Product details

Description

n General Purpose Battery Charger Controller n Efficient 550kHz Synchronous Buck PWM Topology n ±0.5% Output Float Voltage Accuracy n Programmable Charge Current: 4% Accuracy n Programmable AC Adapter Current Limit: 3% Accuracy n No Audible Noise with Ceramic Capacitors n INFET Low Loss Ideal Diode PowerPath™ Control n Wide Input Voltage Range: 6V to 28V n Wide Output Voltage Range: 2V to 28V n Indicator Outputs for AC Adapter Present, Charging, C/10 Current Detection and Input Current Limiting

Features
