LTC2862 - RS485/RS422 Transceivers

Linear Technology Corporation

📥 Download Datasheet

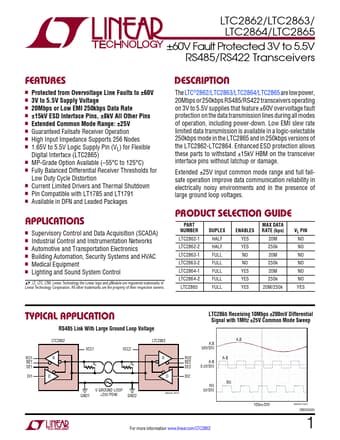

LTC2862 Datasheet Preview — Preview of LTC2862 PDF

Datasheet Details

Part number	LTC2862
Manufacturer	Linear Technology Corporation
File Size	381.42 KB
Description	RS485/RS422 Transceivers
Datasheet	LTC2862_LinearTechnologyCorporation.pdf

LTC2862 Product details

Description

The LTC®2862/LTC2863/LTC2864/LTC2865 are low power, 20Mbps or 250kbps RS485/RS422 transceivers operating on 3V to 5.5V supplies that feature ±60V overvoltage fault protection on the data transmission lines during all modes of operation, including power-down.

Features

n Protected from Overvoltage Line Faults to ±60V n 3V to 5.5V Supply Voltage n 20Mbps or Low EMI 250kbps Data Rate n ±15kV ESD Interface Pins, ±8kV All Other Pins n Extended Common Mode Range: ±25V n Guaranteed Failsafe Receiver Operation n High Input Impedance Supports 256 Nodes n 1.65V to 5.5V Logic Supply Pin (VL) for Flexible Digital Interface (LTC2865) n MP-Grade Option Available (.
55°C to 125°C) n Fully Balanced Differential Receiver Thresholds for Low Duty Cycle Distortion n Curre.
