LT4356-3 Datasheet (Linear Dimensions Semiconductor)

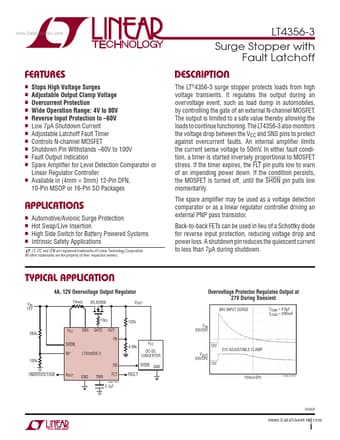

LT4356-3, Surge Stopper

The LT®4356-3 surge stopper protects loads from high voltage transients.

It regulates the output during an overvoltage event, such as load dump in automobiles, by controlling the gate of an external N-channel MOSFET.

The output is limited to a safe value thereby allowing the loads to continue functi

LT4356-3 Features

* n n n n n n n n n n n n Stops High Voltage Surges Adjustable Output Clamp Voltage Overcurrent Protection Wide Operation Range: 4V to 80V Reverse Input Protection to

* 60V Low 7μA Shutdown Current Adjustable Latchoff Fault Timer Controls N-channel MOSFET Shutdown Pin Withstands

* 60V t
