LD2541UUG, LD2541U - 0.25inch dual Digit 7 Segment LED Display

Name: LD2541UUG
SKU: LD2541UUG-793329

LightKey

The LD2541UUG by LightKey is a 0.25inch dual Digit 7 Segment LED Display. Below is the official datasheet preview.

Datasheet Details

Part number	LD2541UUG, LD2541U
Manufacturer	LightKey
File Size	143.81 KB
Description	0.25inch dual Digit 7 Segment LED Display
Datasheet	LD2541U-LightKey.pdf
Note	This datasheet PDF includes multiple part numbers: LD2541UUG, LD2541U. Please refer to the document for exact specifications by model.

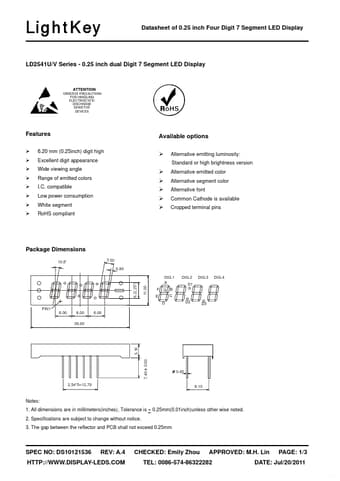

Additional preview pages of the LD2541UUG datasheet.

¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ 6.20 mm (0.25inch) digit high Excellent digit appearance Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White segment RoHS compliant Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative segment color Alternative font Common Cathode is available Cropped terminal pins Package Dimensions 10.0 ° 3.50 0.80 DIG.1 A 11.00 DIG.2 D1 DIG.3 DIG.4 6.2(.25") F E G B C.
