LT433 - Photo DMOS-FET Relay

Description

The LT433 is a miniature 1-Form A solid state relay in an 4 pin DIP package that employs optically coupled MOSFET technology to provide 3750V of input to output isolation.

The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and MOS FETs on the output side.

Features

  • Low driver power requirements (TTL/CMOS Compatible).
  • No moving parts.
  • High reliability.
  • Arc-Free with no snubbing circuits.
  • 3750Vrms Input/Output isolation.

📥 Download Datasheet

Datasheet preview – LT433

Datasheet Details

Part number LT433
Manufacturer Letex Technology
File Size 108.88 KB
Description Photo DMOS-FET Relay
Datasheet download datasheet LT433 Datasheet
Additional preview pages of the LT433 datasheet.

📁 Similar Datasheet

  • LT431 - LED (LED Technology)
  • LT4320 - Ideal Diode Bridge Controller (Linear Technology)
  • LT4320-1 - Ideal Diode Bridge Controller (Linear Technology)
  • LT4321 - PoE Ideal Diode Bridge Controller (Linear Technology)
  • LT4322 - High-Voltage Active Rectifier Controller (Analog Devices)
  • LT4351 - MOSFET Diode-OR Controller (Linear Technology)
  • LT4356-1 - Surge Stopper (Linear Technology)
  • LT4356-2 - Surge Stopper (Intersil Corporation)
  • LT4356-2 - Surge Stopper (Linear)
  • LT4356-3 - Surge Stopper (Linear Dimensions Semiconductor)
Other Datasheets by Letex Technology

    Full PDF Text Transcription

    Click to expand full text

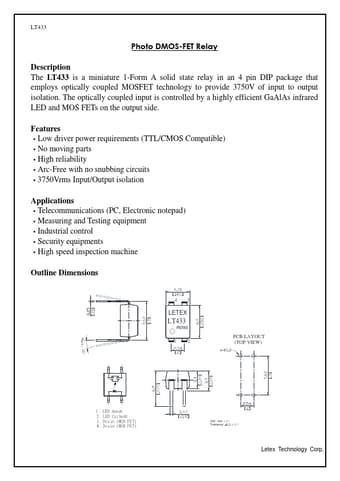

    LT433 Photo DMOS-FET Relay Description The LT433 is a miniature 1-Form A solid state relay in an 4 pin DIP package that employs optically coupled MOSFET technology to provide 3750V of input to output isolation. The optically coupled input is controlled by a highly efficient GaAlAs infrared LED and MOS FETs on the output side. Features •Low driver power requirements (TTL/CMOS Compatible) •No moving parts •High reliability •Arc-Free with no snubbing circuits •3750Vrms Input/Output isolation Applications •Telecommunications (PC, Electronic notepad) •Measuring and Testing equipment •Industrial control •Security equipments •High speed inspection machine Outline Dimensions 43 43 LETEX LT433 R093 12 PCB LAYOUT (TOP VIEW) 4 12 1. LED Anode 2. LED Cathode 3. Drain (MOS FET) 4.
