S-LBAS70LT3G, S-LBAS70LT1G - SCHOTTKY BARRIER DIODE

Leshan Radio Company

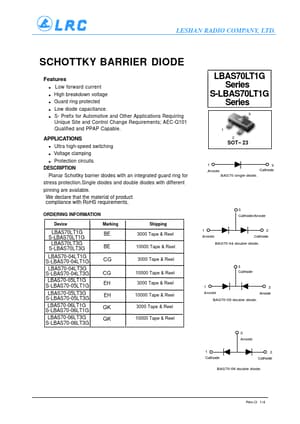

S-LBAS70LT3G Datasheet Preview — This datasheet PDF includes multiple part numbers: S-LBAS70LT3G, S-LBAS70LT1G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	S-LBAS70LT3G, S-LBAS70LT1G
Manufacturer	Leshan Radio Company
File Size	81.90 KB
Description	SCHOTTKY BARRIER DIODE
Datasheet	S-LBAS70LT1G-LeshanRadioCompany.pdf
Note	This datasheet PDF includes multiple part numbers: S-LBAS70LT3G, S-LBAS70LT1G. Please refer to the document for exact specifications by model.

S-LBAS70LT3G Product details

Description

Planar Schottky barrier diodes with an integrated guard ring for stress protection.Single diodes and double diodes with different pinning are available.

Features

Low forward current High breakdown voltage Guard ring protected Low diode capacitance. S- Prefix for Automotive and Other.
