S-LBAS316T1G High speed diode

Leshan Radio Company

S-LBAS316T1G Description

LESHAN RADIO COMPANY, LTD.High-speed diode .
The LBAS316T1 is a high-speed switching diode fabricated in planar technology, and encapsulated in the SOD323(SC76) SMD plastic package.

S-LBAS316T1G Features

* Ultra small plastic SMD package
* High switching speed: max. 4 ns
* Continuous reverse voltage: max. 75 V
* Repetitive peak reverse voltage: max. 100 V
* Repetitive peak forward current: max. 500 mA.
* We declare that the material of product compliance with RoHS requirement

S-LBAS316T1G Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. APPLICATIONS
* High-speed switching in e. g. surface mounted circuits. LBAS316T1G S-LBAS316T1G 1 2 SOD
* 323 1 CATHODE 2 ANODE ORDERING INFORMATION Device Marking Shipping LBAS316T1G S-LBAS

📥 Download Datasheet

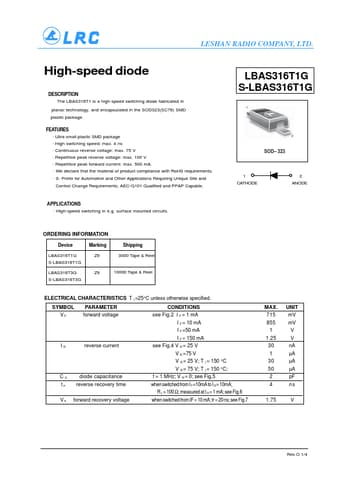

S-LBAS316T1G Datasheet Preview — Preview of S-LBAS316T1G PDF

Datasheet Details

Part number: S-LBAS316T1G
Manufacturer: Leshan Radio Company
File Size: 221.20 KB
Datasheet: S-LBAS316T1G-LeshanRadioCompany.pdf
Description: High speed diode
