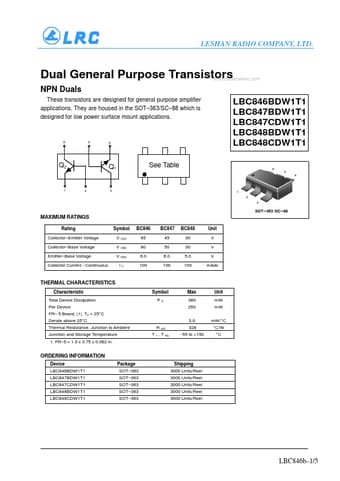

LBC847BDW1T1, (LBC846xDW1T1 - LBC848xDW1T1) Dual General Purpose Transistors NPN Duals

LESHAN RADIO COMPANY, LTD.

Dual General Purpose Transistors www.datasheet4u.com NPN Duals These transistors are designed for general purpose amplifier applications.

They are housed in the SOT 363/SC 88 which is designed for low power surface mount applications.

6 5 4 LBC846BDW1T1 LBC847BDW1T1 LBC847CDW1T1 LBC848BDW1T1 LBC848CDW1T1 6 5 4 Q2 Q1 See Table 1 2 3 1 2 3 SOT-363 /SC-88 MAXIMUM RATINGS Rating Collector Emitter Voltage Collector Base Voltage
