L2SD1781KQLT1, L2SD1781KxLT1 Medium Power Transistor

Leshan Radio Company

Description

LRC LESHAN RADIO COMPANY,LTD.Medium Power Transistor (32V, 0.8A) L2SD1781K *LT1www.DataSheet4U.com F.

📥 Download Datasheet

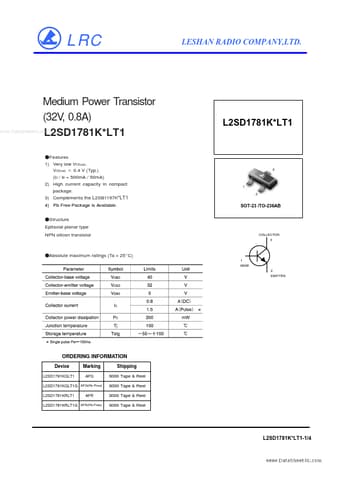

L2SD1781KQLT1 Datasheet Preview — This datasheet PDF includes multiple part numbers: L2SD1781KQLT1, L2SD1781KxLT1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: L2SD1781KQLT1, L2SD1781KxLT1
Manufacturer: Leshan Radio Company
File Size: 126.11 KB
Datasheet: L2SD1781KxLT1_LeshanRadioCompany.pdf
Description: Medium Power Transistor
Note: This datasheet PDF includes multiple part numbers: L2SD1781KQLT1, L2SD1781KxLT1.
Please refer to the document for exact specifications by model.

Features

* 1) Very low VCE(sat). VCE(sat) t 0.4 V (Typ. ) (IC / IB = 500mA / 50mA) 2) High current capacity in compact package. 3) Complements the L2SB1197K
* LT1 4) Pb Free Package is Available. FStructure Epitaxial planar type NPN silicon transistor FAbsolute maximum ratings (Ta = 25_C) L2SD1781K
* LT1
