SMDJ14A, SMDJ5.0A - 3000W Transient Voltage Suppressor

Leiditech

The SMDJ14A by Leiditech is a 3000W Transient Voltage Suppressor. Below is the official datasheet preview.

📥 Download Datasheet

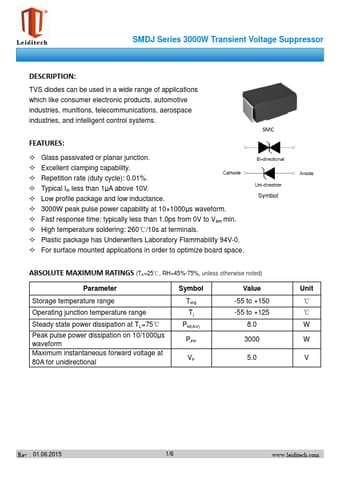

SMDJ14A 3000W Transient Voltage Suppressor by Leiditech - Datasheet Preview — Official preview page of the **SMDJ14A** 3000W Transient Voltage Suppressor datasheet (Leiditech).

Datasheet Details

Part number	SMDJ14A, SMDJ5.0A
Manufacturer	Leiditech
File Size	785.64 KB
Description	3000W Transient Voltage Suppressor
Datasheet	SMDJ5.0A-leiditech.pdf
Note	This datasheet PDF includes multiple part numbers: SMDJ14A, SMDJ5.0A. Please refer to the document for exact specifications by model.
Additional preview pages of the SMDJ14A datasheet.

SMDJ14A Product details

Description

TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.

Features

Glass passivated or planar junction.
Excellent clamping capability.
Repetition rate (duty cycle): 0.01%.
Typical IR less than 1μA above 10V.
Low profile package and low inductance.
3000W peak pulse power capability at 10×1000μs waveform.
Fast response time: typically less than 1.0ps from 0V to VBR min.
High temperature soldering: 260℃/10s at terminals.
Plastic package has Underwriters Laboratory Flammability 94V-0.
For surface mounted.
