SM8S10CA, SM8S10A - 6600W Transient Voltage Suppressor

Name: SM8S10CA
SKU: SM8S10CA-1219347

Leiditech

📥 Download Datasheet

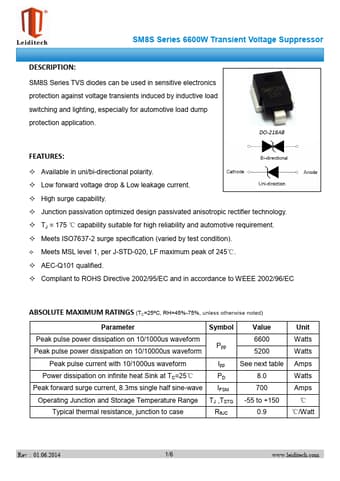

SM8S10CA Datasheet Preview — This datasheet PDF includes multiple part numbers: SM8S10CA, SM8S10A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SM8S10CA, SM8S10A
Manufacturer	Leiditech
File Size	1.26 MB
Description	6600W Transient Voltage Suppressor
Datasheet	SM8S10A-leiditech.pdf
Note	This datasheet PDF includes multiple part numbers: SM8S10CA, SM8S10A. Please refer to the document for exact specifications by model.

SM8S10CA Product details

Description

SM8S Series TVS diodes can be used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.

Features

Available in uni/bi-directional polarity.
Low forward voltage drop & Low leakage current.
High surge capability.
Junction passivation optimized design passivated anisotropic rectifier technology.
TJ = 175 ℃ capability suitable for high reliability and automotive requirement.
Meets ISO7637-2 surge specification (varied by test condition).
Meets MSL level 1, per J-STD-020, LF maximum peak of 245℃.
AEC-Q101 qualified.
Compliant to ROHS Directiv.
