SD1271D3W 1-Line Uni-directional TVS Diode

SD1271D3W Description

.

SD1271D3W Features

* Ultra low leakage: nA level
* Operating voltage: 12V
* Low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
* IEC61000-4-4 (EFT) 80A (5/50ns)
* IEC61000-4-5 (Lightning) 64

SD1271D3W Applications

* Mobile Phones and Accessories
* Battery Protection
* USB VBus
* Power Line Protection
* Hand Held Portable Applications Mechanical Characteristics
* Package: SOD-323
* Lead Finish: Lead Free
* UL Flammability Classification Rating 94V-0
* Quantity Per Reel:3,000

📥 Download Datasheet

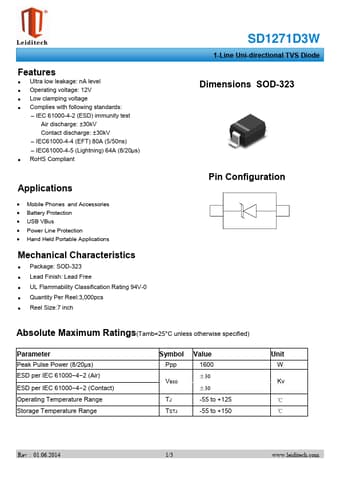

Preview of SD1271D3W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD1271D3W
Manufacturer
Leiditech
File Size
701.60 KB
Datasheet
SD1271D3W-Leiditech.pdf
Description
1-Line Uni-directional TVS Diode
