S-DSK115, S-DSK12 - SCHOTTKY BARRIER RECTIFIER

Leiditech

📥 Download Datasheet

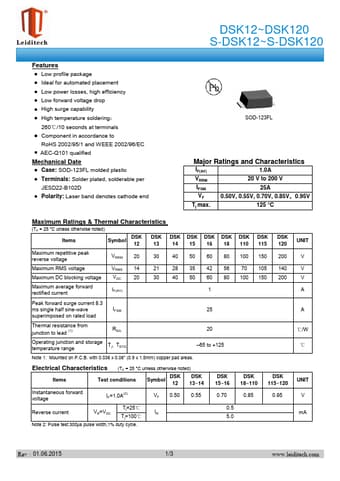

S-DSK115 Datasheet Preview — This datasheet PDF includes multiple part numbers: S-DSK115, S-DSK12. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-DSK115, S-DSK12
Manufacturer	Leiditech
File Size	237.81 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	S-DSK12-Leiditech.pdf
Note	This datasheet PDF includes multiple part numbers: S-DSK115, S-DSK12. Please refer to the document for exact specifications by model.

S-DSK115 Product details

Features

Low profile package.
Ideal for automated placement.
Low power losses, high efficiency.
Low forward voltage drop.
High surge capability.
High temperature soldering： 260℃/10 seconds at terminals.
Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC.
AEC-Q101 qualified Mechanical Date.
Case: SOD-123FL molded plastic.
Terminals: Solder plated, solderable per JESD22-B102D.
Polarity: Laser band denotes cathode end SOD-123FL Major Ratin.
