ESD0506S8 - 6-Line Low Capacitance TVS Diode Array

Leiditech

📥 Download Datasheet

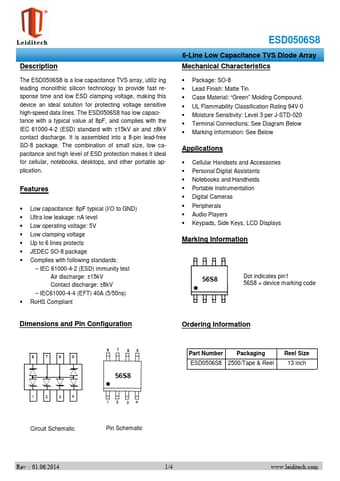

ESD0506S8 Datasheet Preview — Preview of ESD0506S8 PDF

Datasheet Details

Part number	ESD0506S8
Manufacturer	Leiditech
File Size	302.84 KB
Description	6-Line Low Capacitance TVS Diode Array
Datasheet	ESD0506S8-Leiditech.pdf

ESD0506S8 Product details

Description

The ESD0506S8 is a low capacitance TVS array, utiliz ing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines.

Features

Low capacitance: 8pF typical (I/O to GND).
Ultra low leakage: nA level.
Low operating voltage: 5V.
Low clamping voltage.
Up to 6 lines protects.
JEDEC SO-8 package.
Complies with following standards:.
IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV.
IEC61000-4-4 (EFT) 40A (5/50ns).
RoHS Compl.
