LT9641-81 Datasheet (Ledtech Electronics) - (LT96xx-81) Emitting Color

LT9641-81, (LT96xx-81) Emitting Color

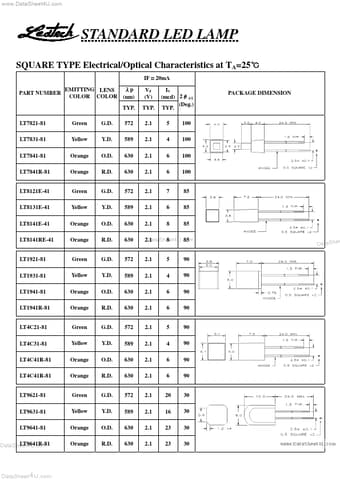

www.DataSheet4U.com STANDARD LED LAMP SQUARE TYPE Electrical/Optical Characteristics at TA=25℃ IF＝ 20mA PART NUMBER λp EMITTING LENS COLOR COLOR (nm) TYP.

LT7821-81 LT7831-81 LT7841-81 LT7841R-81 Green Yellow Orange Orange G.D.

Y.D.

O.D.

R.D.

572 589 630 630 VF (V) TYP.

2.1 2.1 2.1 2.1 IV (mcd) 2θ 1/2 (Deg.) TYP.

5 4 6 6 100 100 100 100 PACKAGE DIMENSION LT8121E-41 LT8131E-41 LT8141E-41 LT8141RE-41 Green Yellow Orange Orange G.D.

Y.D.

O.D.

R.D.

572 589 630 630 2.1 2.1 2.1 7 6 8 85 85 85
