LEGM450BH120L2H1 - IGBT

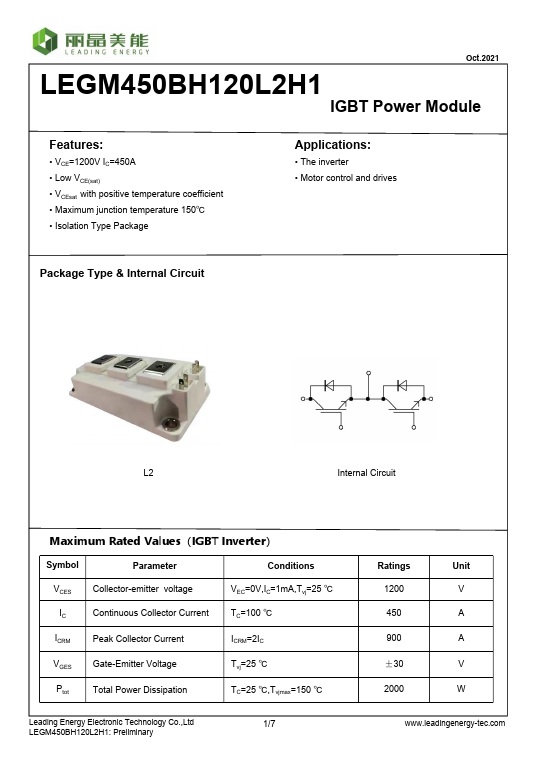

The LEGM450BH120L2H1 by Leading Energy is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

LEGM450BH120L2H1 IGBT by Leading Energy - Datasheet Preview — Official preview page of the LEGM450BH120L2H1 IGBT datasheet (Leading Energy).

Datasheet Details

Part number	LEGM450BH120L2H1
Manufacturer	Leading Energy
File Size	1.32 MB
Description	IGBT
Datasheet	LEGM450BH120L2H1-LeadingEnergy.pdf

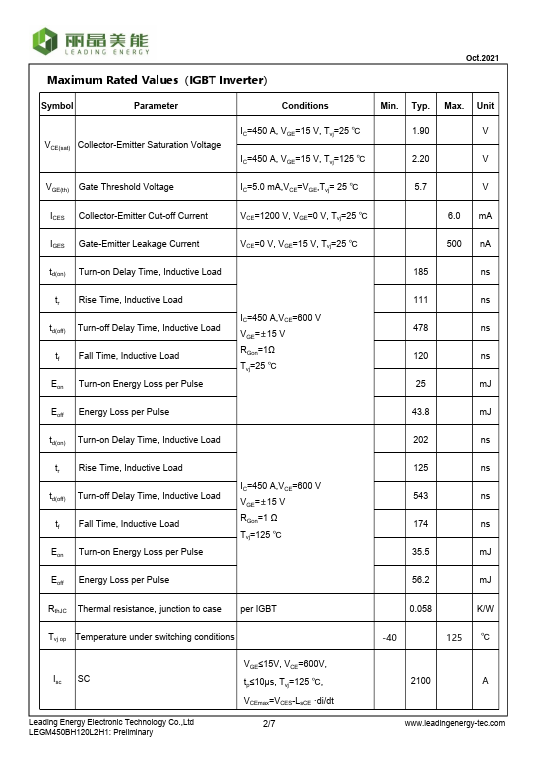

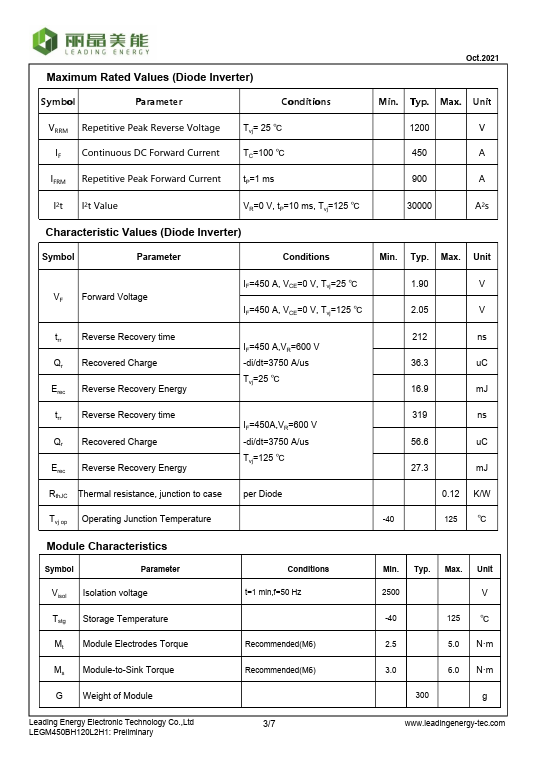

Additional preview pages of the LEGM450BH120L2H1 datasheet.

LEGM450BH120L2H1 Product details

Features

VCE=1200V IC=450A.
Low VCE(sat).
VCEsat with positive temperature coefficient.
Maximum junction temperature 150℃.
Isolation Type Package.
