ISPLSI2064A - In-System Programmable High Density PLD

Download the ISPLSI2064A datasheet PDF (ISPLSI2064 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for in-system programmable high density pld.

Description

The ispLSI 2064 and 2064A are High Density Programmable Logic Devices.

The devices contain 64 Registers, 64 Universal I/O pins, four Dedicated Input pins, three Dedicated Clock Input pins, two dedicated Global OE input pins and a Global Routing Pool (GRP).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ISPLSI2064-LatticeSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ISPLSI2064A
Manufacturer Lattice Semiconductor
File Size 212.15 KB
Description In-System Programmable High Density PLD
Datasheet download datasheet ISPLSI2064A Datasheet

📁 Similar Datasheet

  • ISP0912 - Bluetooth Low Energy Module (Insight SiP)
  • ISP091201 - Bluetooth Low Energy Module (Insight SiP)
  • ISP1040B - Intelligent SCSI Processor (QLogic Corporation)
  • ISP1040B - SCSI I/O Processor (Qlogic)
  • ISP1040C - Intelligent SCSI Processor (QLogic Corporation)
  • ISP1102 - Advanced Universal Serial Bus transceiver (NXP)
  • ISP1102BS - Advanced Universal Serial Bus transceiver (NXP)
  • ISP1102W - Advanced Universal Serial Bus transceiver (NXP)
  • ISP1103 - Universal Serial Bus transceiver (NXP)
  • ISP1103D - Universal Serial Bus transceiver (NXP)
Other Datasheets by Lattice Semiconductor
  • ISPLSI2064 - In-System Programmable High Density PLD
  • ispLSI2064E - In-System Programmable SuperFAST High Density PLD
  • ISPLSI2064VE - 3.3V In-System Programmable High Density SuperFAST PLD
  • ispLSI2064VL - 2.5V In-System Programmable SuperFAST High Density PLD
  • ISPLSI2032 - In-System Programmable High Density PLD
  • ISPLSI2032A - In-System Programmable High Density PLD
  • ispLSI2032E - In-System Programmable SuperFAST High Density PLD
  • ispLSI2032VE - 3.3V In-System Programmable High Density SuperFAST PLD

Full PDF Text Transcription

Click to expand full text

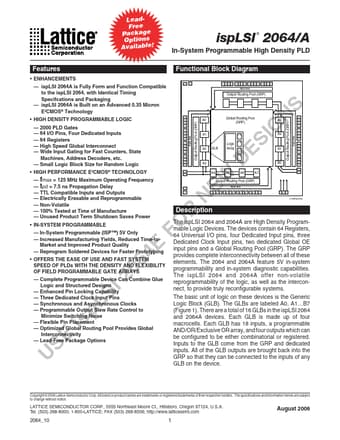

LeadFree Package Options Available! ispLSI® 2064/A In-System Programmable High Density PLD USE ispLSI 2064E FOR NEW Features • ENHANCEMENTS — ispLSI 2064A is Fully Form and Function Compatible to the ispLSI 2064, with Identical Timing Specifcations and Packaging — ispLSI 2064A is Built on an Advanced 0.35 Micron E2CMOS® Technology • HIGH DENSITY PROGRAMMABLE LOGIC — 2000 PLD Gates — 64 I/O Pins, Four Dedicated Inputs — 64 Registers — High Speed Global Interconnect — Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc. — Small Logic Block Size for Random Logic • HIGH PERFORMANCE E2CMOS® TECHNOLOGY — fmax = 125 MHz Maximum Operating Frequency — tpd = 7.
