LI0402B800R-10 - Ferrite EMI Chip Beads

Download the LI0402B800R-10 datasheet PDF (HZ0402-A601R included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ferrite emi chip beads.

Description

High Current Chips ( > 3 Amps ) Mid Current Chips ( 1 Amp to < 3 Amps ) High Retention Under Bias 4 Line Chip Array ( Page 4 ) DESCRIPTION / SPECIAL

Features

  • Up to 10 Amps (I MAX) continuous operating capability.
  • Low DCR.
  • Vibration Resistant.
  • Rugged monolithic construction.
  • Small footprint.
  • Excellent retention under bias.
  • Superior impedance vs. frequency characteristics.
  • Economical.
  • Broad range of sizes ( from EIA 0402 up to 3312 ).
  • Broad range of impedance values and current ratings.
  • Lead free & RoHS compliant.
  • High bias current resistant ve.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HZ0402-A601R-10.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LI0402B800R-10
Manufacturer Laird
File Size 498.80 KB
Description Ferrite EMI Chip Beads
Datasheet download datasheet LI0402B800R-10 Datasheet

📁 Similar Datasheet

  • LI0201 - Ferrite Chip Beads (Laird Technologes)
  • LI0805xxx - Surface Mount EMI Suppression Ferrite Chips (Steward)
Other Datasheets by Laird

Full PDF Text Transcription

Click to expand full text

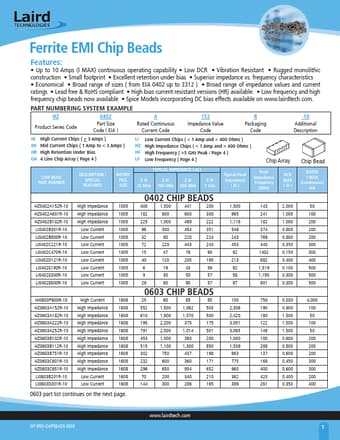

Ferrite EMI Chip Beads Features: • Up to 10 Amps (I MAX) continuous operating capability • Low DCR • Vibration Resistant • Rugged monolithic construction • Small footprint • Excellent retention under bias • Superior impedance vs. frequency characteristics • Economical • Broad range of sizes ( from EIA 0402 up to 3312 ) • Broad range of impedance values and current ratings • Lead free & RoHS compliant • High bias current resistant versions (HR) available. • Low frequency and high frequency chip beads now available • Spice Models incorporating DC bias effects available on www.lairdtech.com.
Published: |
