FX816A Photo Transistor Coupler

FX816A Description

www.lyg-semi.com FX816 Series DIP4, DC Input, Photo Transistor Coupler .
The FX816 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor detector in a.

FX816A Features

* High isolation 5000 VRMS
* CTR flexibility available see order information
* DC input with transistor output
* Operating temperature range - 55 °C to 110 °C
* Copper Leadframe
* REACH Compliance
* MSL class 1
* Halogen free (Optional)
* Regulatory Approval

FX816A Applications

* Switch mode power supplies
* Programmable controllers
* Household appliances

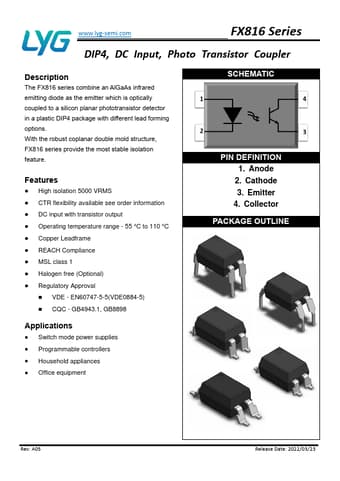

* Office equipment SCHEMATIC 1 4 2 3 PIN DEFINITION 1. Anode 2. Cathode 3. Emitter 4. Collector PACKAGE OUTLINE Rev: A05 Release Date: 2022/03/23 www. lyg-semi. com FX816 Series DI
