NQ80221 - Ethernet Media Interface Adapter

Download the NQ80221 datasheet PDF (NQ80220 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ethernet media interface adapter.

Description

The 80220/80221 are highly integrated analog interface IC's for twisted pair Ethernet applications.

The 80220/ 80221 can be configured for either 100 Mbps (100BaseTX) or 10 Mbps (10Base-T) Ethernet operation.

Features

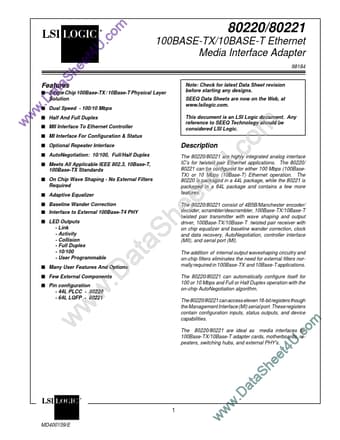

  • a t a D . w t e e 4U m o . c 80220/80221 80220/80221 100BASE-TX/10BASE-T Ethernet Media Interface Adapter 98184 Note: Check for latest Data Sheet revision before starting any designs. SEEQ Data Sheets are now on the Web, at www. lsilogic. com. This document is an LSI Logic document. Any reference to SEEQ Technology should be considered LSI Logic. s Single Chip 100Base-TX / 10Base-T Physical Layer Solution s Dual Speed - 100/10 Mbps s Half And Full Duplex s MII Interface To Ethernet Controller.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NQ80220_LSILogicCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NQ80221
Manufacturer LSI Logic Corporation
File Size 633.05 KB
Description Ethernet Media Interface Adapter
Datasheet download datasheet NQ80221 Datasheet

📁 Similar Datasheet

Other Datasheets by LSI Logic Corporation
  • NQ80220 - Ethernet Media Interface Adapter
  • NQ80225 - Ethernet Physical Layer Device
  • NQ8020 - MCC Manchester Code Converter
  • NQ8023A - MCC Manchester Code Converter

Full PDF Text Transcription

Click to expand full text
w w h S Features a t a D . w t e e 4U m o .c 80220/80221 80220/80221 100BASE-TX/10BASE-T Ethernet Media Interface Adapter 98184 Note: Check for latest Data Sheet revision before starting any designs. SEEQ Data Sheets are now on the Web, at www.lsilogic.com. This document is an LSI Logic document. Any reference to SEEQ Technology should be considered LSI Logic. s Single Chip 100Base-TX / 10Base-T Physical Layer Solution s Dual Speed - 100/10 Mbps s Half And Full Duplex s MII Interface To Ethernet Controller s MI Interface For Configuration & Status s Optional Repeater Interface s AutoNegotiation: 10/100, Full/Half Duplex s Meets All Applicable IEEE 802.
