LDTA113ZLT1 - Digital transistors

LRC

📥 Download Datasheet

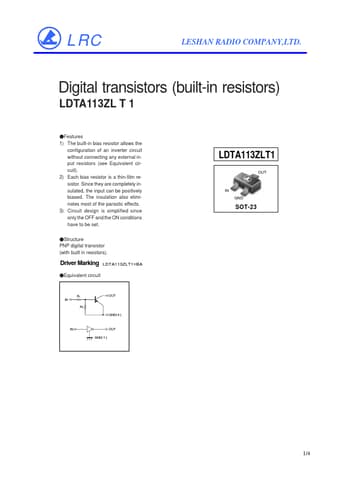

LDTA113ZLT1 Datasheet Preview — Preview of LDTA113ZLT1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LDTA113ZLT1
Manufacturer	LRC
File Size	149.44 KB
Description	Digital transistors
Datasheet	LDTA113ZLT1-LRC.pdf

LDTA113ZLT1 Product details

Features

1) The built-in bias resistor allows the configuration of an inverter circuit without connecting any external input resistors (see Equivalent circuit). 2) Each bias resistor is a thin-film resistor. Since they are completely insulated, the input can be positively biased. The insulation also eliminates most of the parastic effects. 3) Circuit design is simplified since only the OFF and the ON conditions have to be set. FStructure PNP digital transistor (with built in resistors). Driver Marking LD.
