GBL201 - High Current Glass Passivated Molding Single-Phase Bridge Rectifier

Key Features

  • z Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 z High current capacity with small package z Glass passivated chip junctions z Superior thermal conductivity z High IFSM 1. Maximum & Thermal Characteristics Ratings at 25 ambient temperature unless otherwise specified. Parameter Symbol Maximum repetitive voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum DC reverse current TA=25 at rated DC blocking voltage TA=125 Average rectified forward current 60H.

📥 Download Datasheet

Datasheet Details

Part number GBL201
Manufacturer LRC
File Size 166.15 KB
Description High Current Glass Passivated Molding Single-Phase Bridge Rectifier
Datasheet download datasheet GBL201 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBL201 Single Phase 2.0AMPS. Glass Passivated Bridge Rectifiers Taiwan Semiconductor
GBL201 GLASS PASSIVATED BRIDGE RECTIFIERS LITE-ON
GBL201 2.0 Amp Glass Passivated Bridge Rectifiers SeCoS
GBL2005 GLASS PASSIVATED BRIDGE RECTIFIERS LITE-ON
GBL202 2A Glass Passivated Single-Phase Bridge Rectifiers CITC

Other Datasheets by LRC

Part Number Description
GBL2005 Glass Passivated Single-Phase Bridge Rectifier
GBL202 High Current Glass Passivated Molding Single-Phase Bridge Rectifier
GBL204 High Current Glass Passivated Molding Single-Phase Bridge Rectifier
GBL206 High Current Glass Passivated Molding Single-Phase Bridge Rectifier
GBL208 High Current Glass Passivated Molding Single-Phase Bridge Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

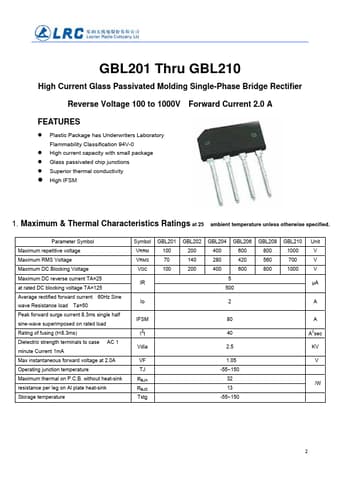

  GBL201 Thru GBL210 High Current Glass Passivated Molding Single-Phase Bridge Rectifier Reverse Voltage 100 to 1000V Forward Current 2.0 A FEATURES z Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 z High current capacity with small package z Glass passivated chip junctions z Superior thermal conductivity z High IFSM 1. Maximum & Thermal Characteristics Ratings at 25 ambient temperature unless otherwise specified. Parameter Symbol Maximum repetitive voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum DC reverse current TA=25 at rated DC blocking voltage TA=125 Average rectified forward current 60Hz Sine wave Resistance load Ta=50 Peak forward surge current 8.3ms single half sine-wave superimposed on rated load Rating of fusing (t<8.
