D5SB10 - High Current Glass Passivated Molding Single-Phase Bridge Rectifier

Product Overview

LRC

Part number	D5SB10
Manufacturer	LRC
File Size	638.17 KB
Description	High Current Glass Passivated Molding Single-Phase Bridge Rectifier
Datasheet	D5SB10 Datasheet

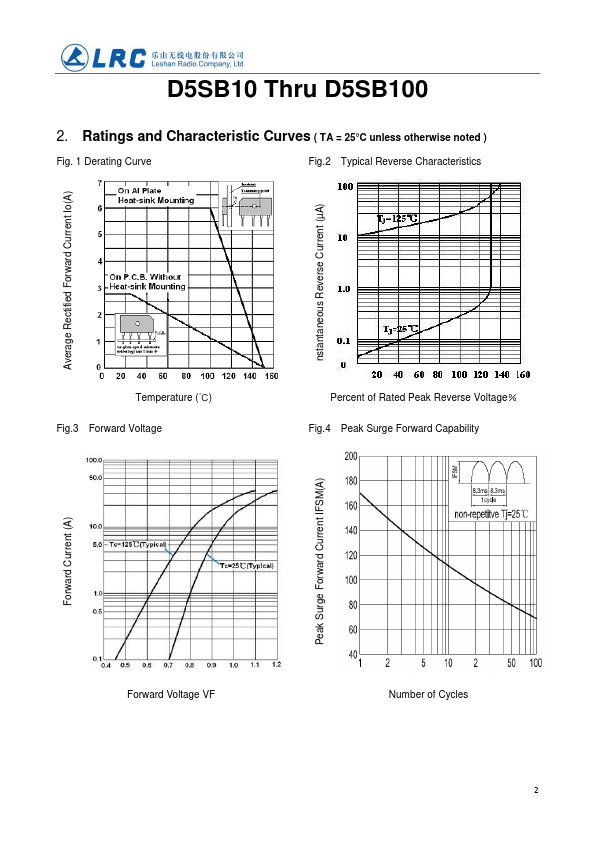

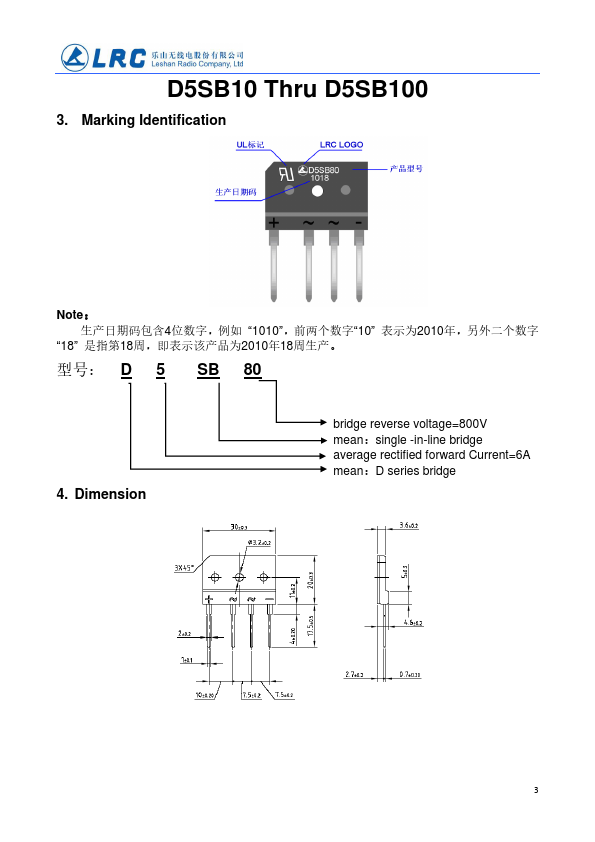

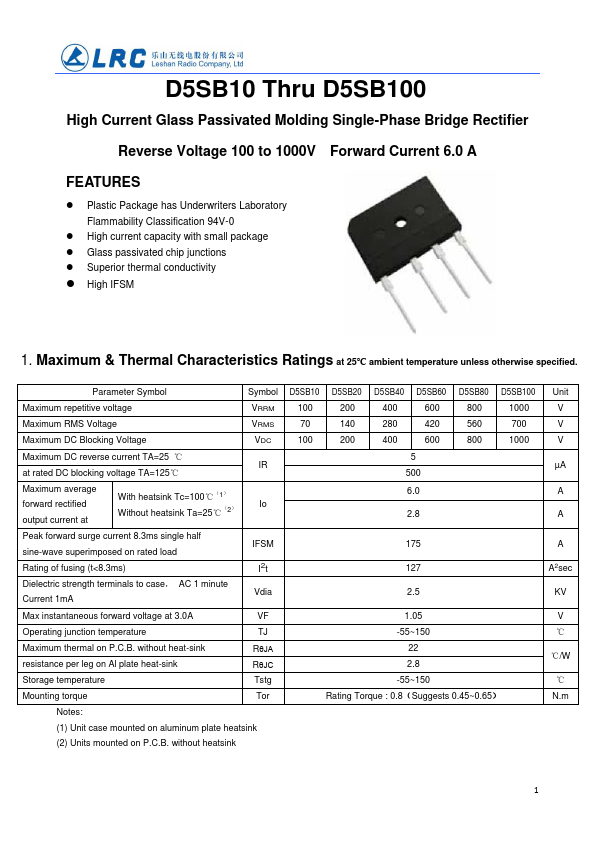

Additional preview pages of the D5SB10 datasheet.

Plastic Package has Underwriters Laboratory Flammability Classification 94V-0.
High current capacity with small package.
Glass passivated chip junctions.
Superior thermal conductivity.
High IFSM 1. Maximum & Thermal Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Parameter Symbol Symbol Maximum repetitive voltage VRRM Maximum RMS Voltage VRMS Maximum DC Blocking Voltage VDC Maximum DC reverse current TA=25 ℃ IR at rated DC blocki.
