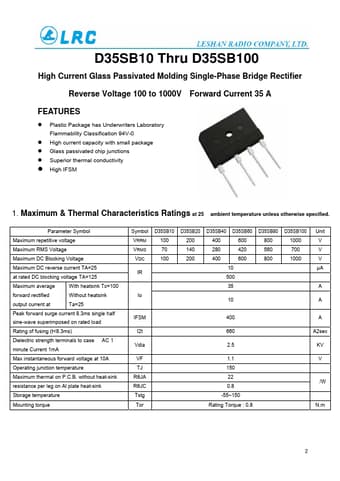

D35SB10 Thru D35SB100
High Current Glass Passivated Molding Single-Phase Bridge Rectifier
Reverse Voltage 100 to 1000V Forward Current 35 A
FEATURES
z Plastic Package has Underwriters Laboratory Flammability Classification 94V-0
z High current capacity with small package z Glass passivated chip junctions z Superior thermal conductivity
z High IFSM
1. Maximum & Thermal Characteristics Ratings at 25 ambient temperature unless otherwise specified.
Parameter Symbol
Maximum repetitive voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum DC reverse current TA=25
at rated DC blocking voltage TA=125
Maximum average
With heatsink Tc=100
forward rectified
Without heatsink
output current at
Ta=25
Peak forward surge current 8.
