LZC9205 High Performance PWM Flyback Controller

LZC9205 Description

LZC9205 High Performance PWM Flyback Controller General .
LZC9205 is a high performance, current mode PWM controller.

LZC9205 Features

* make it to achieve high efficiency and low standby power with effective system cost. At heavy load, the LZC9205 operate in fixed switching frequency. At light load condition, the system operates in green mode for high efficiency. And at zero load, the IC will operate in BURST mode to enhance power s

LZC9205 Applications

* Switching AC/DC power adapter
* SMPS Power Supply Typical Application L N VDD DRV OTP CS LZC9205 GND FB Confidential -1- Preliminary V1.1 LZC9205 High Performance PWM Flyback Controller Pin Configuration（SOT23-6） GND 1 FB 2 OTP 3 6 DRV 5 VDD 4 CS Absolute Maximum Ratings

📥 Download Datasheet

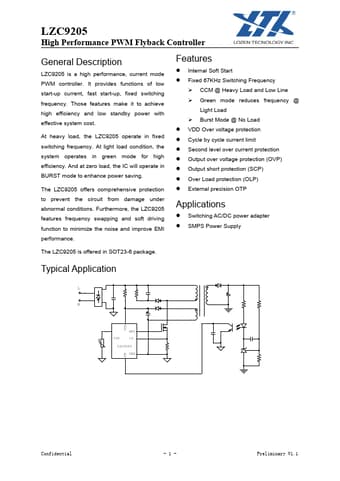

LZC9205 Datasheet Preview — Preview of LZC9205 PDF

Datasheet Details

Part number: LZC9205
Manufacturer: LOZEN TECHNOLOGY
File Size: 244.11 KB
Datasheet: LZC9205-LOZENTECHNOLOGY.pdf
Description: High Performance PWM Flyback Controller
