LSD65R380GF - N-channel Power MOSFET

Description

LonFETTM Power MOSFET is fabricated using advanced super junction technology.

The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency.

Features

  • Ultra low RDS(on).
  • Ultra low gate charge (typ. Qg = 21nC).
  • 100% UIS tested.
  • RoHS compliant.

📥 Download Datasheet

Datasheet Details

Part number LSD65R380GF
Manufacturer LONTEN
File Size 2.23 MB
Description N-channel Power MOSFET
Datasheet download datasheet LSD65R380GF Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LSD030xx-10 LED Displays Wenrun
LSD056BAM-10 LED DISPLAYS Wenrun
LSD056BUE-10 LED DISPLAYS Wenrun
LSD056BUE-101C LED Displays Wenrun
LSD056BUY-10 LED DISPLAYS Wenrun

Other Datasheets by LONTEN

Part Number Description
LSD60R092GF N-channel Power MOSFET
LSD04N65 N-channel MOSFET
LSD04N70A N-channel Power MOSFET
LSD07N70 N-channel MOSFET
LSD11N65 N-channel MOSFET

Full PDF Text Transcription

Click to expand full text

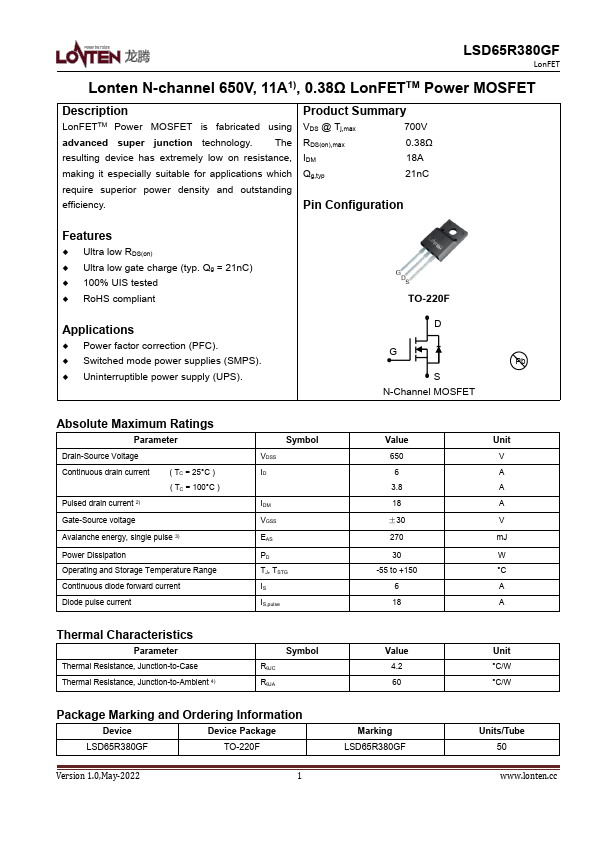

LSD65R380GF LonFET Lonten N-channel 650V, 11A1), 0.38Ω LonFETTM Power MOSFET Description LonFETTM Power MOSFET is fabricated using advanced super junction technology. The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency. Product Summary VDS @ Tj,max 700V RDS(on),max 0.38Ω IDM 18A Qg,typ 21nC Pin Configuration Features  Ultra low RDS(on)  Ultra low gate charge (typ. Qg = 21nC)  100% UIS tested  RoHS compliant Applications  Power factor correction (PFC).  Switched mode power supplies (SMPS).  Uninterruptible power supply (UPS).
