LF3310 - Horizontal / Vertical Digital Image Filter

LOGIC Devices Incorporated

The LF3310 by LOGIC Devices Incorporated is a Horizontal / Vertical Digital Image Filter. Below is the official datasheet preview.

Datasheet Details

Part number	LF3310
Manufacturer	LOGIC Devices Incorporated
File Size	287.29 KB
Description	Horizontal / Vertical Digital Image Filter
Datasheet	LF3310_LOGICDevicesIncorporated.pdf

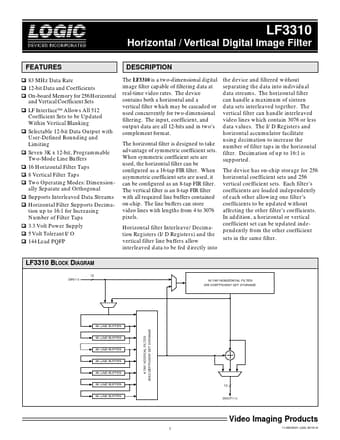

Additional preview pages of the LF3310 datasheet.

The LF3310 is a two-dimensional digital image filter capable of filtering data at real-time video rates.

u 83 MHz Data Rate u 12-bit Data and Coefficients u On-board Memory for 256 Horizontal and Vertical Coefficient Sets u LF InterfaceTM Allows All 512 Coefficient Sets to be Updated Within Vertical Blanking u Selectable 12-bit Data Output with User-Defined Rounding and Limiting u Seven 3K x 12-bit, Programmable Two-Mode Line Buffers u 16 Horizontal Filter Taps u 8 Vertical Filter Taps u Two Operating Modes: Dimensionally Separate and Orthogonal u Supports Interleaved Data Streams u Horizontal Filt.
