CR2512 Chip Resistors

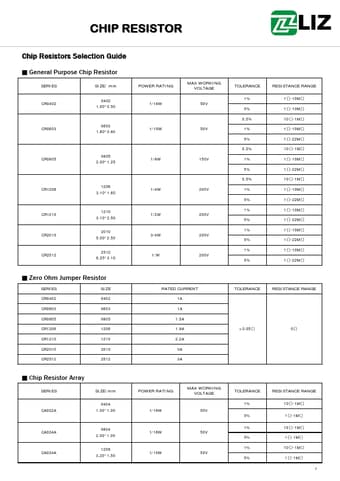

CHIP RESISTOR Chip Resistors Selection Guide General Purpose Chip Resistor SERIES SIZE/ mm CR0402 0402 1.00 0.50 POWER RATING 1/16W CR0603 0603 1.60 0.80 1/10W CR0805 0805 2.00 1.25 1/8W CR1206 CR1210 CR2010 CR2512 1206 3.10 1.60 1210 3.10 2.50 2010 5.00 2.50 2512 6.25 3.10 1/4W 1/2W 3/4W 1/W MAX WORKING VOLTAGE 50V 50V 150V 200V 200V 200V 200V TOLERANCE 1% 5% 0.5% 1% 5% 0.5% 1% 5% 0.5% 1% 5% 1% 5% 1% 5% 1% 5% RESISTANCE RANGE 1Ω-10MΩ 1Ω-10MΩ .
