LTW-C281DS5 - SMD LED

LITEON

📥 Download Datasheet

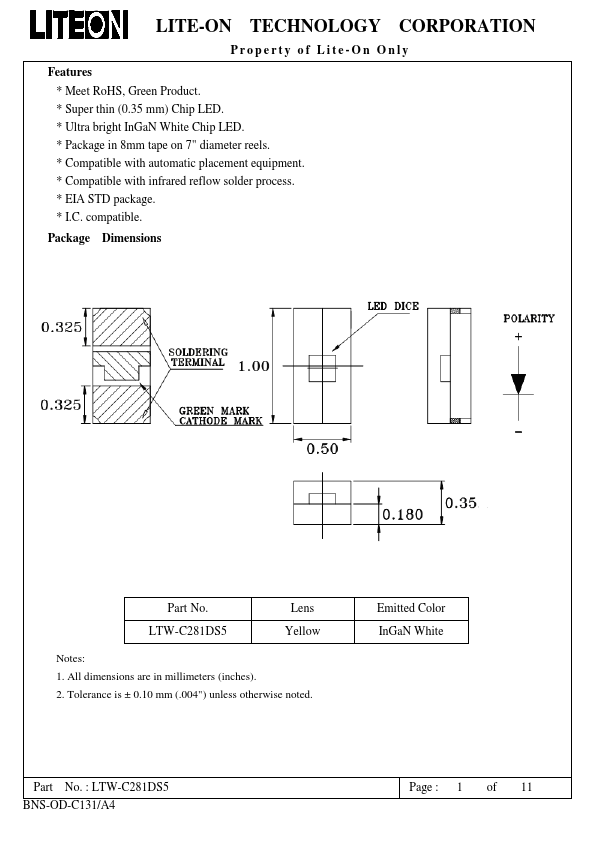

LTW-C281DS5 Datasheet Preview — Preview of LTW-C281DS5 PDF

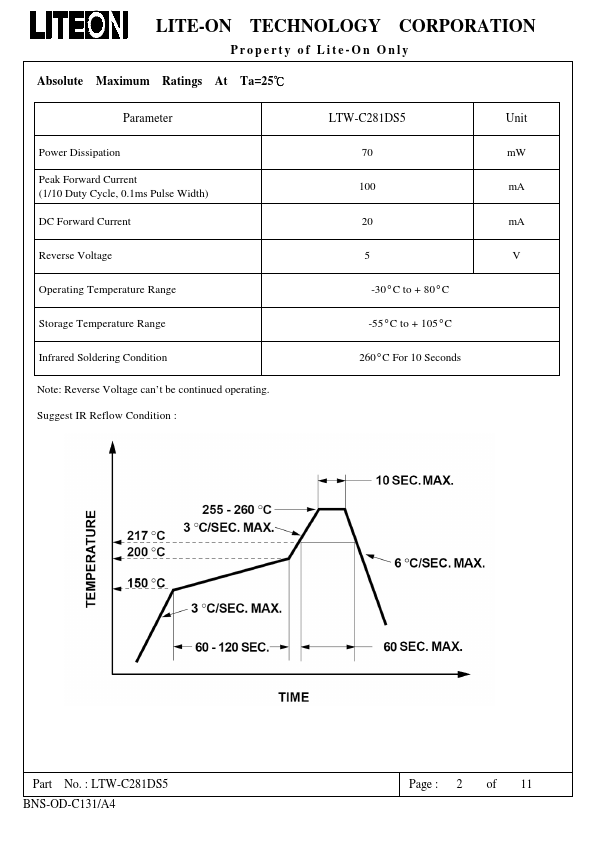

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTW-C281DS5
Manufacturer	LITEON
File Size	671.37 KB
Description	SMD LED
Datasheet	LTW-C281DS5-LITEON.pdf

LTW-C281DS5 Product details

Features

Meet RoHS, Green Product.
Super thin (0.35 mm) Chip LED.
Ultra bright InGaN White Chip LED.
Package in 8mm tape on 7" diameter reels.
Compatible with automatic placement equipment.
Compatible with infrared reflow solder process.
EIA STD package.
I. C. compatible. Package Dimensions Part No. LTW-C281DS5 Lens Yellow Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted. Emitted Color InGaN W.
