LTW-87HD4B-032A - Through Hole Lamp

LITEON

📥 Download Datasheet

LTW-87HD4B-032A Datasheet Preview — Preview of LTW-87HD4B-032A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTW-87HD4B-032A
Manufacturer	LITEON
File Size	440.16 KB
Description	Through Hole Lamp
Datasheet	LTW-87HD4B-032A-LITEON.pdf

LTW-87HD4B-032A Product details

Features

Lead (Pb) free product - RoHS compliant.
Low power consumption.
High efficiency & reliability.
Versatile mounting on p. c. board or panel.
I. C. compatible/low current requirement.

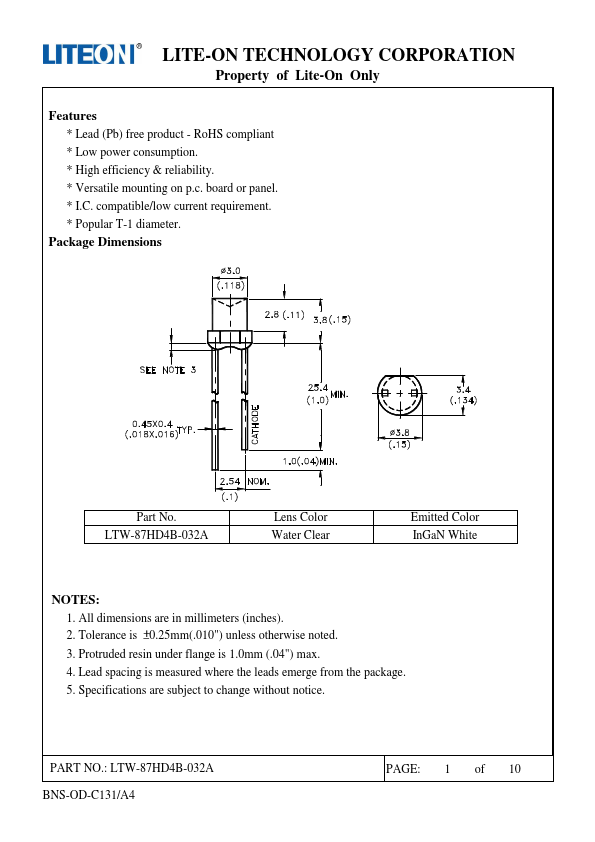

Popular T-1 diameter. Package Dimensions Part No. LTW-87HD4B-032A Lens Color Water Clear Emitted Color InGaN White NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Le.
