LTW-1CHDS4 - Through Hole Lamp

Name: LTW-1CHDS4
SKU: LTW-1CHDS4-1586753

LITEON

📥 Download Datasheet

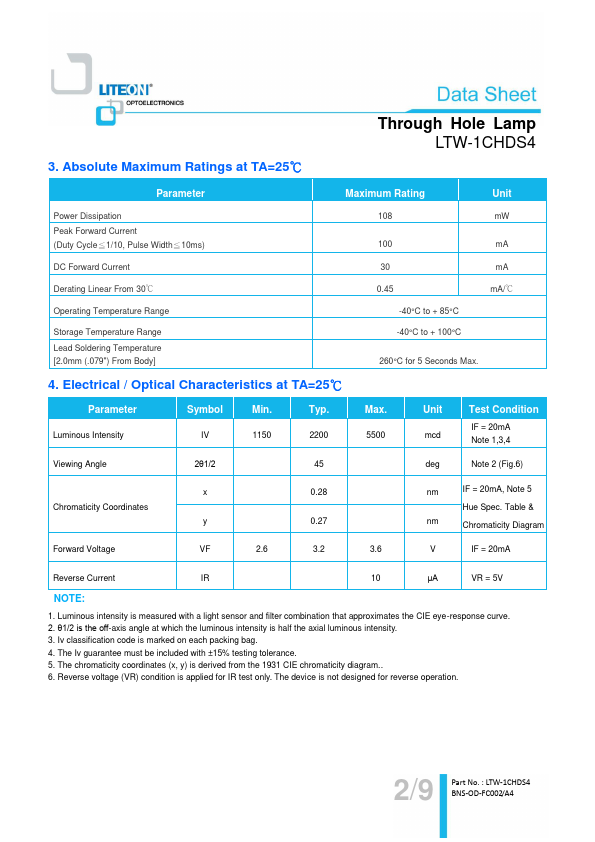

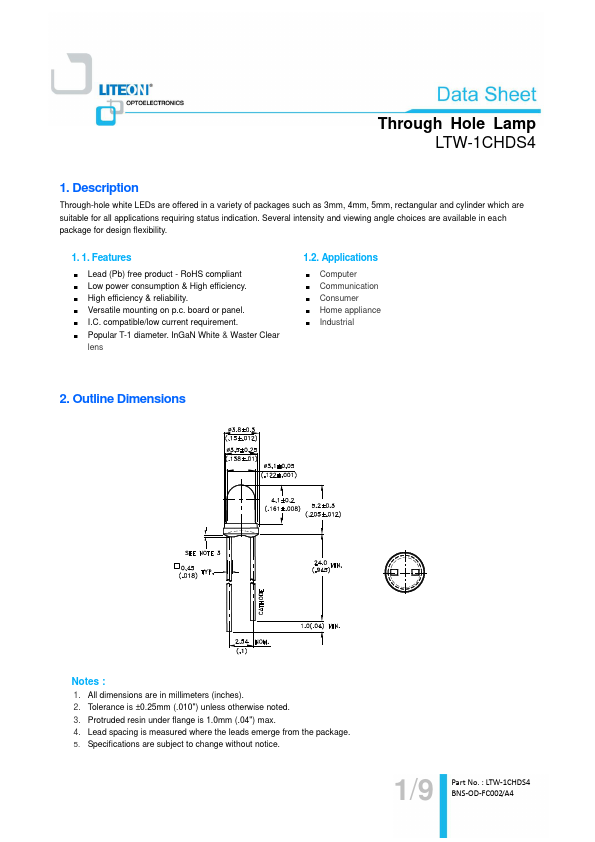

LTW-1CHDS4 Datasheet Preview — Preview of LTW-1CHDS4 PDF

Datasheet Details

Part number	LTW-1CHDS4
Manufacturer	LITEON
File Size	554.82 KB
Description	Through Hole Lamp
Datasheet	LTW-1CHDS4-LITEON.pdf

LTW-1CHDS4 Product details

Description

Through-hole white LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular and cylinder which are suitable for all applications requiring status indication.

Features

Lead (Pb) free product - RoHS compliant.
Low power consumption & High efficiency.
High efficiency & reliability.
Versatile mounting on p. c. board or panel.
I. C. compatible/low current requirement.
Popular T-1 diameter. InGaN White & Waster Clear lens 1.2.
