LTL4HMEPADS - Through Hole Lamp

LITEON

📥 Download Datasheet

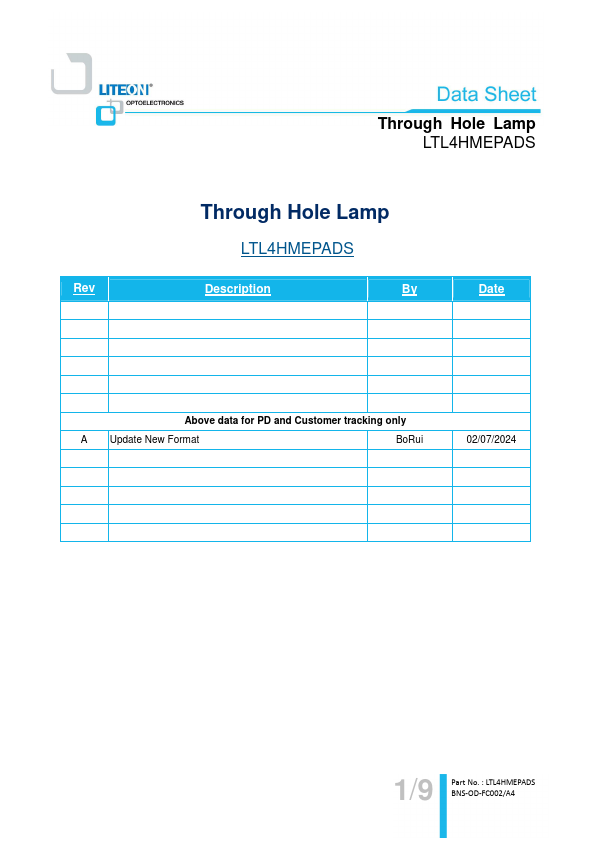

LTL4HMEPADS Datasheet Preview — Preview of LTL4HMEPADS PDF

Datasheet Details

Part number	LTL4HMEPADS
Manufacturer	LITEON
File Size	424.53 KB
Description	Through Hole Lamp
Datasheet	LTL4HMEPADS-LITEON.pdf

LTL4HMEPADS Product details

Description

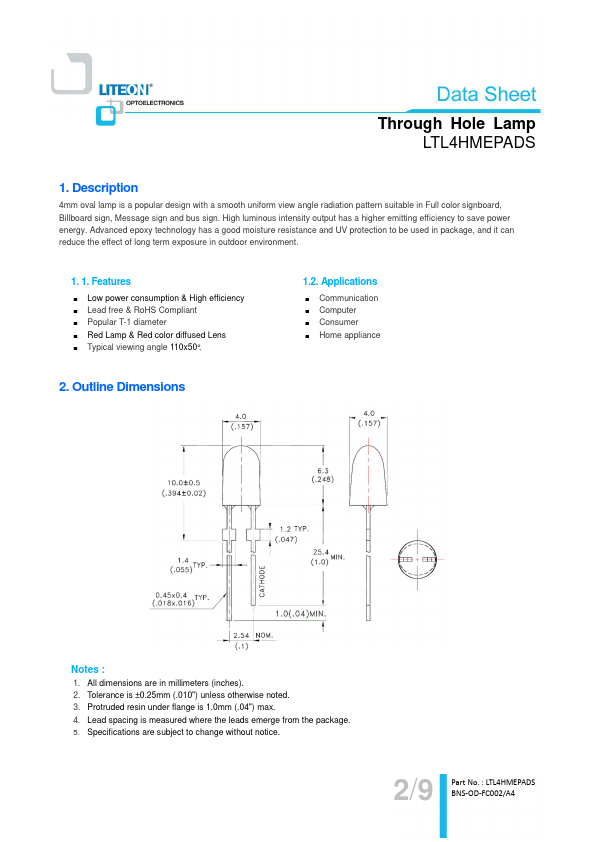

By Date Above data for PD and Customer tracking only A Update New Format BoRui 02/07/2024 1/9 Part No.: LTL4HMEPADS BNS-OD-FC002/A4 Through Hole Lamp LTL4HMEPADS 1. Description 4mm oval lamp is a popular design with a smooth uniform view angle radiation pattern suitable in Full color signboard, Billboard sign, Message sign and bus sign.High luminous intensity output has a higher emitting efficiency to save power energy.Advanced epoxy technology has a good moisture resistance and UV

Features

Low power consumption & High efficiency.
Lead free & RoHS Compliant.
Popular T-1 diameter.
Red Lamp & Red color diffused Lens.
Typical viewing angle 110x50°. 2. Outline Dimensions 1.2.
