LTL2R3KRD-EM - Through Hole Lamp

LITEON

📥 Download Datasheet

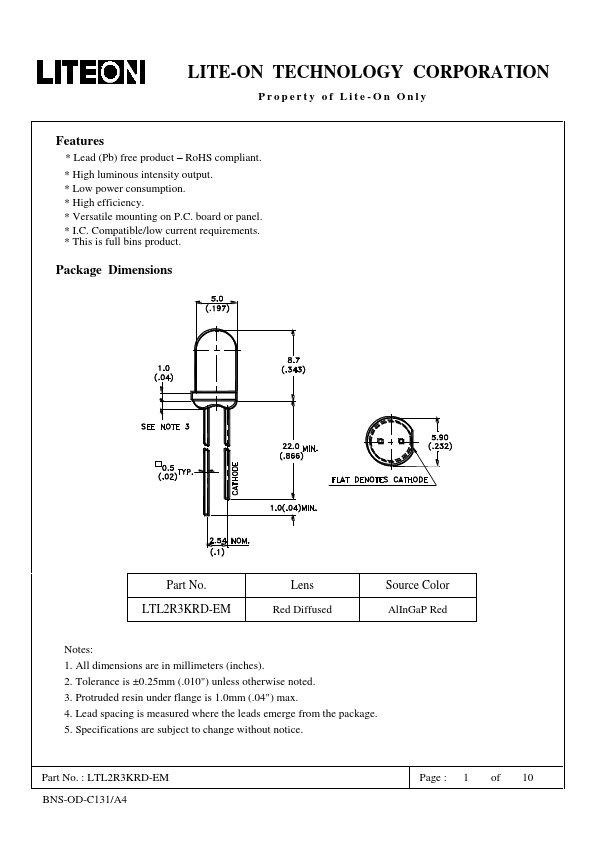

LTL2R3KRD-EM Datasheet Preview — Preview of LTL2R3KRD-EM PDF

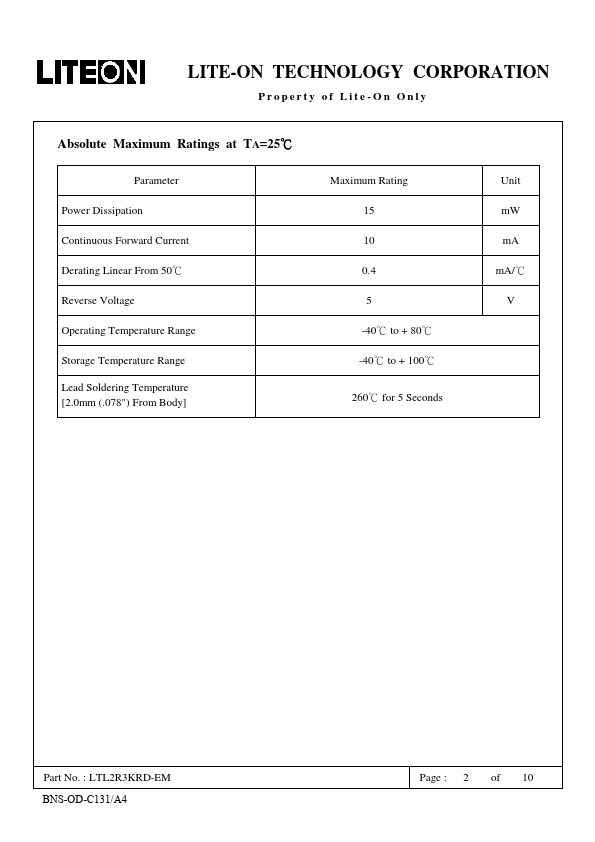

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTL2R3KRD-EM
Manufacturer	LITEON
File Size	651.04 KB
Description	Through Hole Lamp
Datasheet	LTL2R3KRD-EM-LITEON.pdf

LTL2R3KRD-EM Product details

Features

Lead (Pb) free product.
RoHS compliant.
High luminous intensity output.
Low power consumption.
High efficiency.
Versatile mounting on P. C. board or panel.
I. C. Compatible/low current requirements.
This is full bins product.
Popular T-13/4 diameter. Package Dimensions Part No. LTL2R3KRD-EM Lens Red Diffused Source Color AlInGaP Red Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise not.
