LTL14FEGAJ2H214Y - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL14FEGAJ2H214Y Datasheet Preview — Preview of LTL14FEGAJ2H214Y PDF

Datasheet Details

Part number	LTL14FEGAJ2H214Y
Manufacturer	LITEON
File Size	380.70 KB
Description	Through Hole Lamp
Datasheet	LTL14FEGAJ2H214Y-LITEON.pdf

LTL14FEGAJ2H214Y Product details

Description

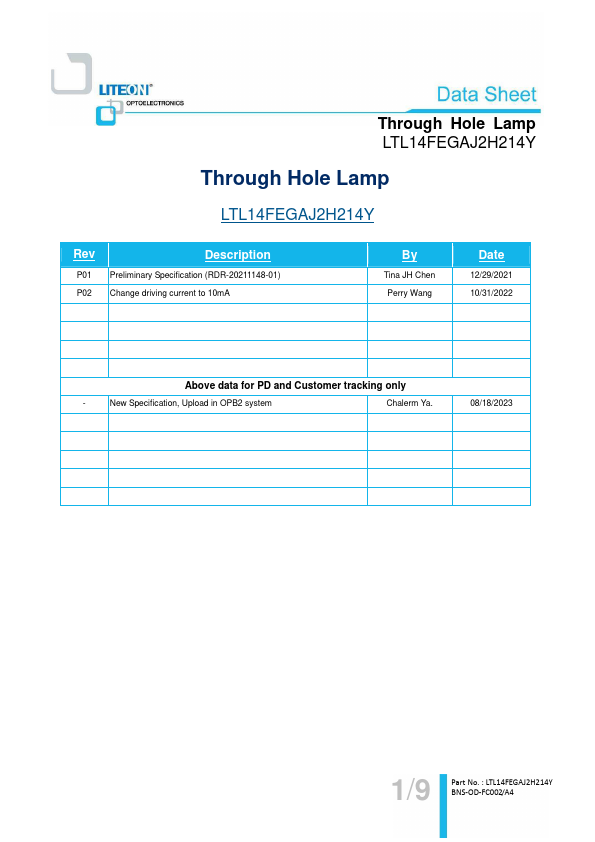

Preliminary Specification (RDR-20211148-01) Change driving current to 10mA By Tina JH Chen Perry Wang Date 12/29/2021 10/31/2022 Above data for PD and Customer tracking only - New Specification, Upload in OPB2 system Chalerm Ya.08/18/2023 1/9 Part No.: LTL14FEGAJ2H214Y BNS-OD-FC002/A4 Through Hole Lamp LTL14FEGAJ2H214Y 1. Description CBI (Circuit Board Indicator) is a black plastic right angle Holder (Housing) which mates with Lite-On LED lamps.Lite-On CBI is available in a wide va

Features

Designed for ease in circuit board assembly.
Black case enhance contrast ratio.
Low power consumption & High efficiency.
Lead free product & RoHS Compliant.
Lamp source bi-colors are AllnGap red 625um and AllnGaP yellow green 570nm chips. 1.2.
