LTL-R42FKFD - Through Hole Lamp

LITEON

The LTL-R42FKFD by LITEON is a Through Hole Lamp. Below is the official datasheet preview.

📥 Download Datasheet

LTL-R42FKFD Through Hole Lamp by LITEON - Datasheet Preview — Official preview page of the **LTL-R42FKFD** Through Hole Lamp datasheet (LITEON).

Datasheet Details

Part number	LTL-R42FKFD
Manufacturer	LITEON
File Size	349.37 KB
Description	Through Hole Lamp
Datasheet	LTL-R42FKFD-LITEON.pdf
Additional preview pages of the LTL-R42FKFD datasheet.

LTL-R42FKFD Product details

Description

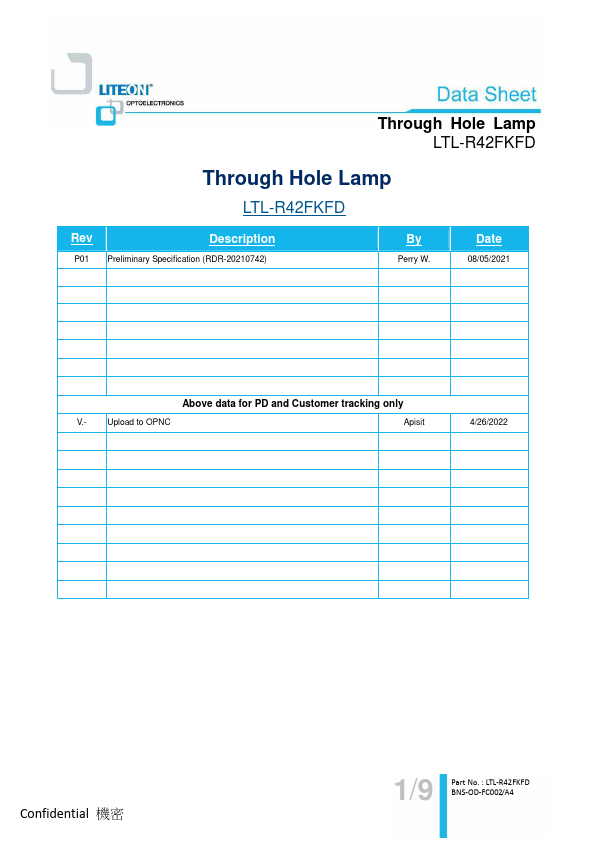

Preliminary Specification (RDR-20210742) By Perry W.Date 08/05/2021 Above data for PD and Customer tracking only V.- Upload to OPNC Apisit 4/26/2022 Confidential 1/9 Part No.: LTL-R42FKFD BNS-OD-FC002/A4 Through Hole Lamp LTL-R42FKFD 1. Description Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication.Several intensity and viewing angle choices are available in eac

Features

Designed for ease in circuit board assembly.
Amber diffused lens.
Low power consumption & High efficiency.
Lead free product & RoHS Compliant.
T-1 diameter: Source color is AlInGaP orange chip. 1.2.
