LTL-4223 - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-4223 Datasheet Preview — Preview of LTL-4223 PDF

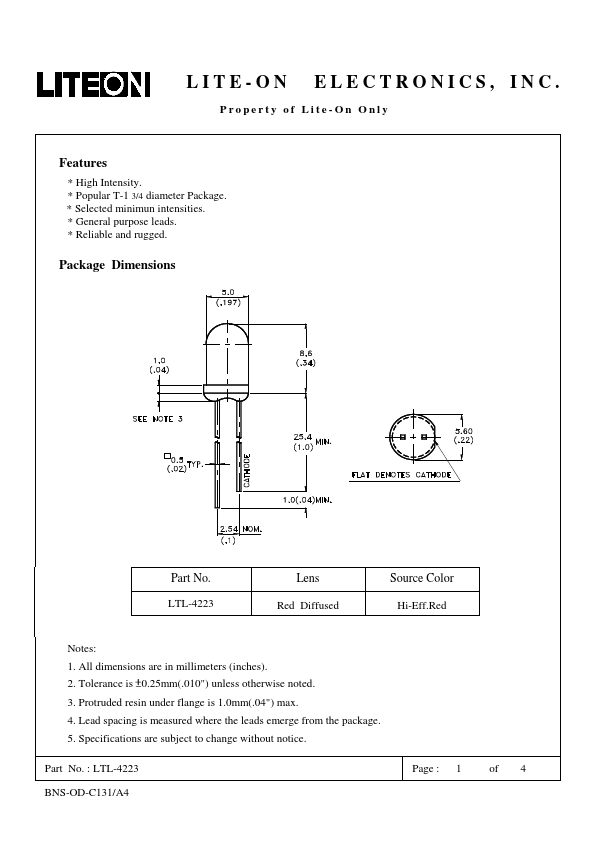

datasheet Preview Page 2

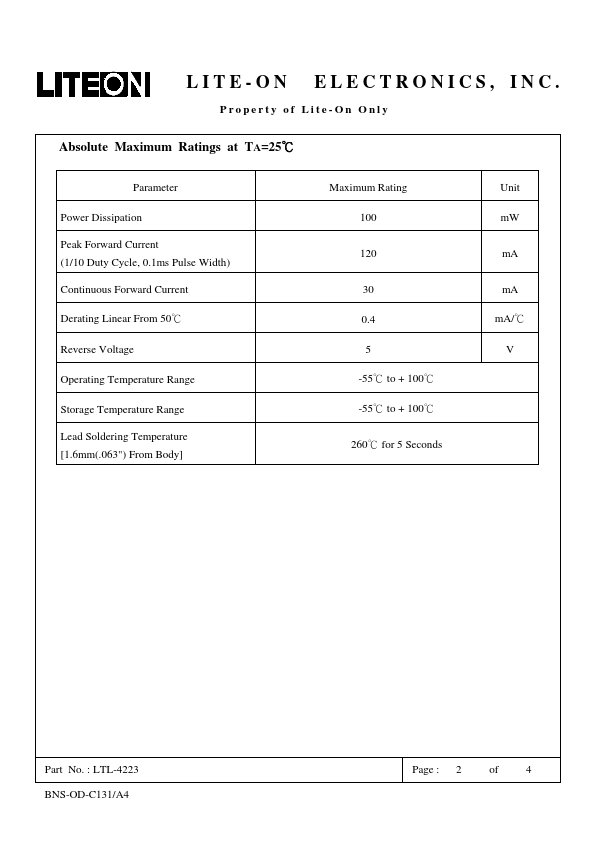

datasheet Preview Page 3

Datasheet Details

Part number	LTL-4223
Manufacturer	LITEON
File Size	381.05 KB
Description	Through Hole Lamp
Datasheet	LTL-4223-LITEON.pdf

LTL-4223 Product details

Features

High Intensity.
Popular T-1 3/4 diameter Package.
Selected minimun intensities.
General purpose leads.
Reliable and rugged. Package Dimensions Part No. LTL-4223 Lens Red Diffused Source Color Hi-Eff. Red Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subject to.
