LTL-1CHEE-071A - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-1CHEE-071A Datasheet Preview — Preview of LTL-1CHEE-071A PDF

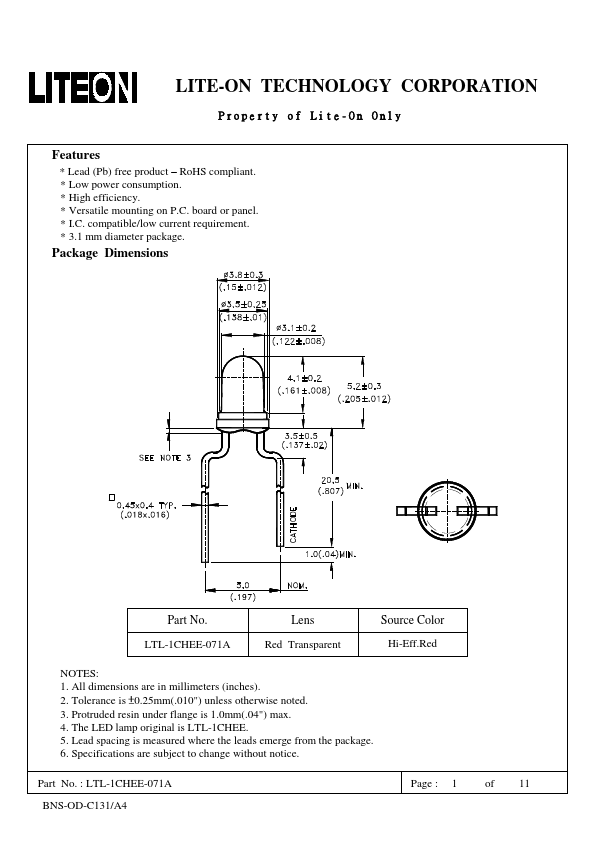

datasheet Preview Page 2

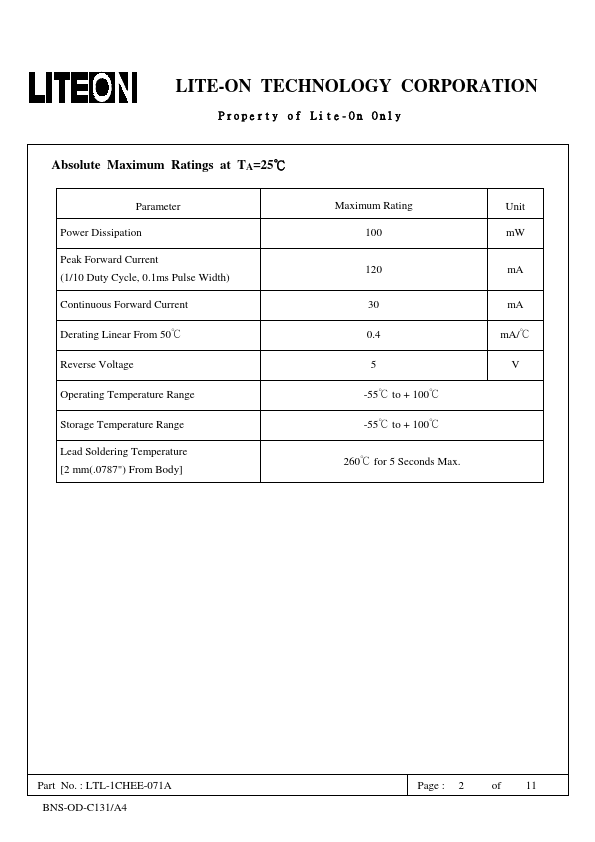

datasheet Preview Page 3

Datasheet Details

Part number	LTL-1CHEE-071A
Manufacturer	LITEON
File Size	606.33 KB
Description	Through Hole Lamp
Datasheet	LTL-1CHEE-071A-LITEON.pdf

LTL-1CHEE-071A Product details

Features

Lead (Pb) free product.
RoHS compliant.
Low power consumption.
High efficiency.
Versatile mounting on P. C. board or panel.
I. C. compatible/low current requirement.
3.1 mm diameter package. Package Dimensions Part No. LTL-1CHEE-071A Lens Red Transparent Source Color Hi-Eff. Red NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. The LED la.
