LTL-14FGFAJ1H106G - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-14FGFAJ1H106G Datasheet Preview — Preview of LTL-14FGFAJ1H106G PDF

Datasheet Details

Part number	LTL-14FGFAJ1H106G
Manufacturer	LITEON
File Size	378.36 KB
Description	Through Hole Lamp
Datasheet	LTL-14FGFAJ1H106G-LITEON.pdf

LTL-14FGFAJ1H106G Product details

Description

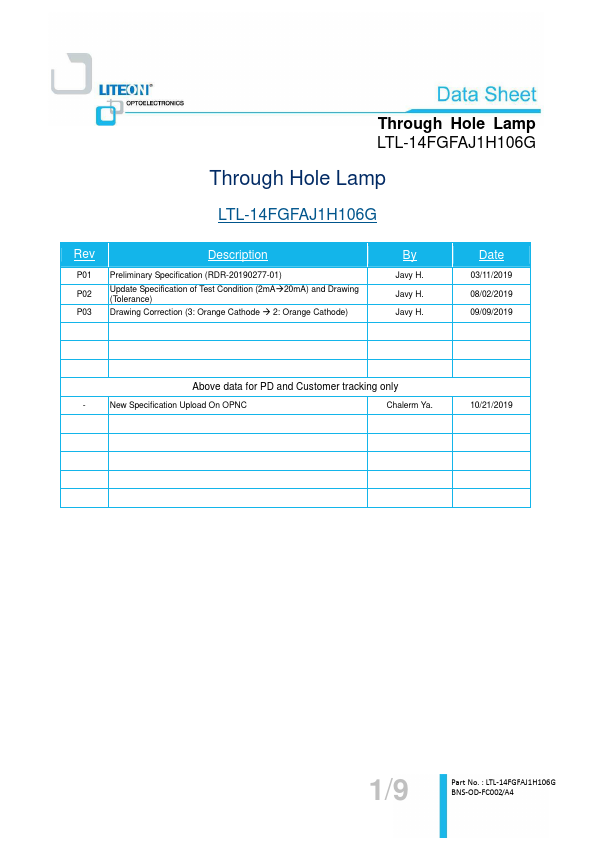

P01 Preliminary Specification (RDR-20190277-01) P02 Update Specification of Test Condition (2mA20mA) and Drawing (Tolerance) P03 Drawing Correction (3: Orange Cathode  2: Orange Cathode) By Javy H.Javy H.Javy H.Date 03/11/2019 08/02/2019 09/09/2019 Above data for PD and Customer tracking only - New Specification Upload On OPNC Chalerm Ya.10/21/2019 1/9 Part No.: LTL-14FGFAJ1H106G BNS-OD-FC002/A4 Through Hole Lamp LTL-14FGFAJ1H106G 1. Description CBI (Circuit Board Indicator

Features

Designed for ease in circuit board assembly.
Black case enhance contrast ratio.
Solid state light source.
Low power consumption & High efficiency.
Lead free product & RoHS Compliant.
T-1 lamp : Source bi-color is AlInGaP green (yellow green) 570nm and orange 605nm chips. 1.2.
