4N27S, 4N27 Photocoupler

4N27S Description

Photocoupler Product Data Sheet 4N27/ 4N28 (M, S, S-TA1) Spec No.:DS-70-99-0011 Effective Date: 05/04/2022 Revision: F LITE-ON DCC RELEASE BNS-OD-FC0.
1. High Current transfer ratio (CTR : MIN. Response time( ton : TYP.

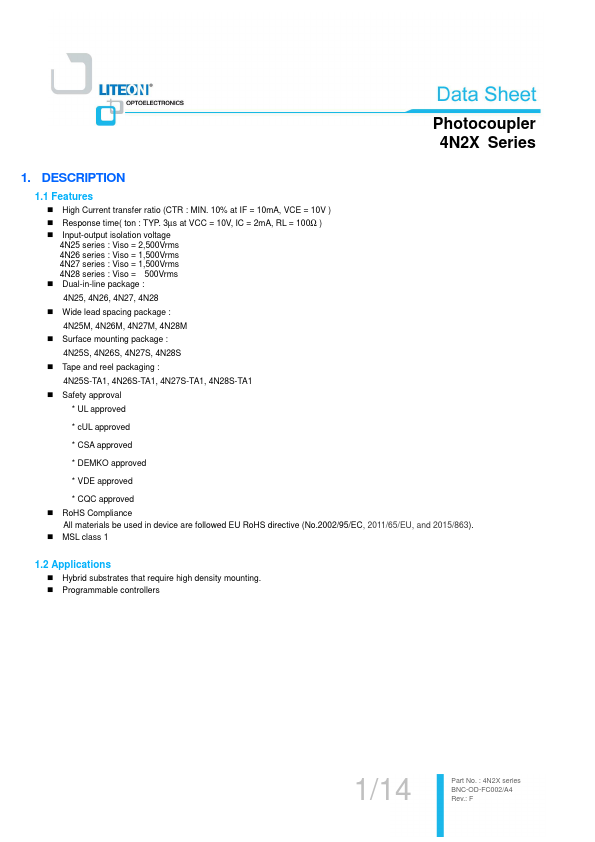

4N27S Features

* High Current transfer ratio (CTR : MIN. 10% at IF = 10mA, VCE = 10V )
* Response time( ton : TYP. 3µs at VCC = 10V, IC = 2mA, RL = 100Ω )
* Input-output isolation voltage 4N25 series : Viso = 2,500Vrms 4N26 series : Viso = 1,500Vrms 4N27 series : Viso = 1,500Vrms 4N28 series : Viso = 5

4N27S Applications

* Hybrid substrates that require high density mounting.

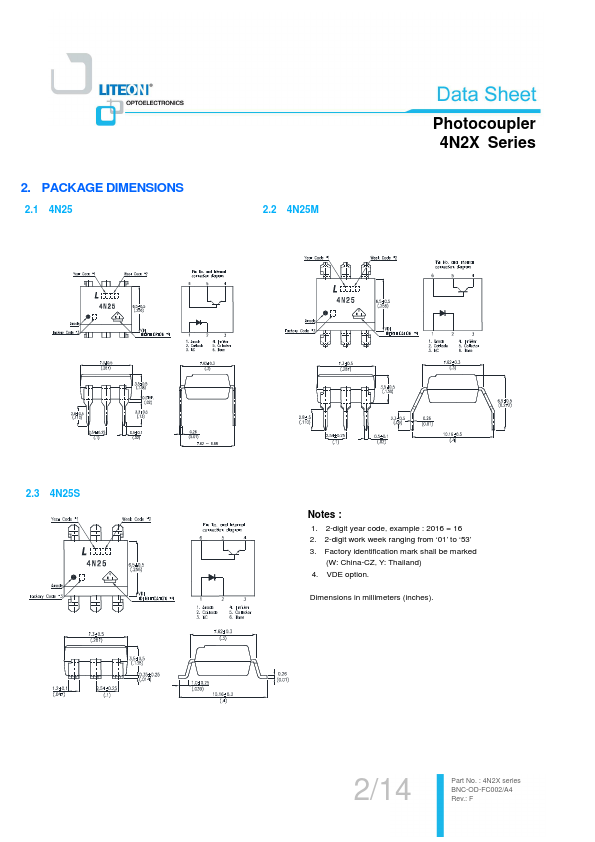

* Programmable controllers 1/14 Part No. : 4N2X series BNC-OD-FC002/A4 Rev. : F 2. PACKAGE DIMENSIONS 2.1 4N25 2.2 4N25M Photocoupler 4N2X Series 2.3 4N25S Notes : 1. 2-digit year code, example : 2016 = 16 2. 2-digit work week ran

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 4N27S, 4N27. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
4N27S, 4N27
Manufacturer
LITEON
File Size
521.22 KB
Datasheet
4N27-LITEON.pdf
Description
Photocoupler
Note
This datasheet PDF includes multiple part numbers: 4N27S, 4N27.
Please refer to the document for exact specifications by model.
