UG2001 - ULTRA FAST GLASS PASSIVATED RECTIFIERS

Download the UG2001 datasheet PDF. This datasheet also covers the UG2001-LITE variant, as both devices belong to the same ultra fast glass passivated rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass passivated chip Ultra fast switching for high efficiency Low reverse leakage current Low forward voltage drop High current capability Easily cleaned with Freon, Alcohol, Chlorothene and similar solvents Plastic material has UL flammabitily classification 94V-0.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UG2001-LITE-ON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UG2001
Manufacturer LITEON
File Size 33.45 KB
Description ULTRA FAST GLASS PASSIVATED RECTIFIERS
Datasheet download datasheet UG2001 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UG2001 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER Diodes Incorporated
UG2002 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER Diodes Incorporated
UG2003 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER Diodes Incorporated
UG2004 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER Diodes Incorporated
UG2004PT 200V High Power Density Ultra Fast Rectifier Taiwan Semiconductor

Other Datasheets by LITEON

Part Number Description
UG2002 ULTRA FAST GLASS PASSIVATED RECTIFIERS
UG2003 ULTRA FAST GLASS PASSIVATED RECTIFIERS
UG2004 ULTRA FAST GLASS PASSIVATED RECTIFIERS
UG2005 ULTRA FAST GLASS PASSIVATED RECTIFIERS
UG2006 ULTRA FAST GLASS PASSIVATED RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

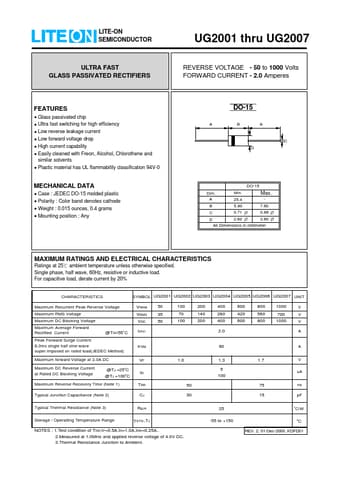

LITE-ON SEMICONDUCTOR ULTRA FAST GLASS PASSIVATED RECTIFIERS UG2001 thru UG2007 REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 2.0 Amperes FEATURES Glass passivated chip Ultra fast switching for high efficiency Low reverse leakage current Low forward voltage drop High current capability Easily cleaned with Freon, Alcohol, Chlorothene and similar solvents Plastic material has UL flammabitily classification 94V-0 MECHANICAL DATA Case : JEDEC DO-15 molded plastic Polarity : Color band denotes cathode Weight : 0.015 ounces, 0.4 grams Mounting position : Any DO-15 A BA C D DO-15 Dim. Min. Max. A 25.4 B 5.80 7.60 C 0.71 0.86 D 2.60 3.60 All Dimensions in millimeter MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified.
